Tutorial for OR SS-GF Chassis

Parts Details:

1- 3D printed Chassis parts:

Shapeways Shop Section ⇒ C14 – One Replica

Fully removable core chassis, compatible with all soundboards, and featuring a 21700 battery for extended runtime, on Neopixel or Tri-Cree. Approx $60 depending on the material used.
All.in.One: one-replica-ss-gf-lightsaber-chassis

2- DIY empty hilts:

 Contact One Replica

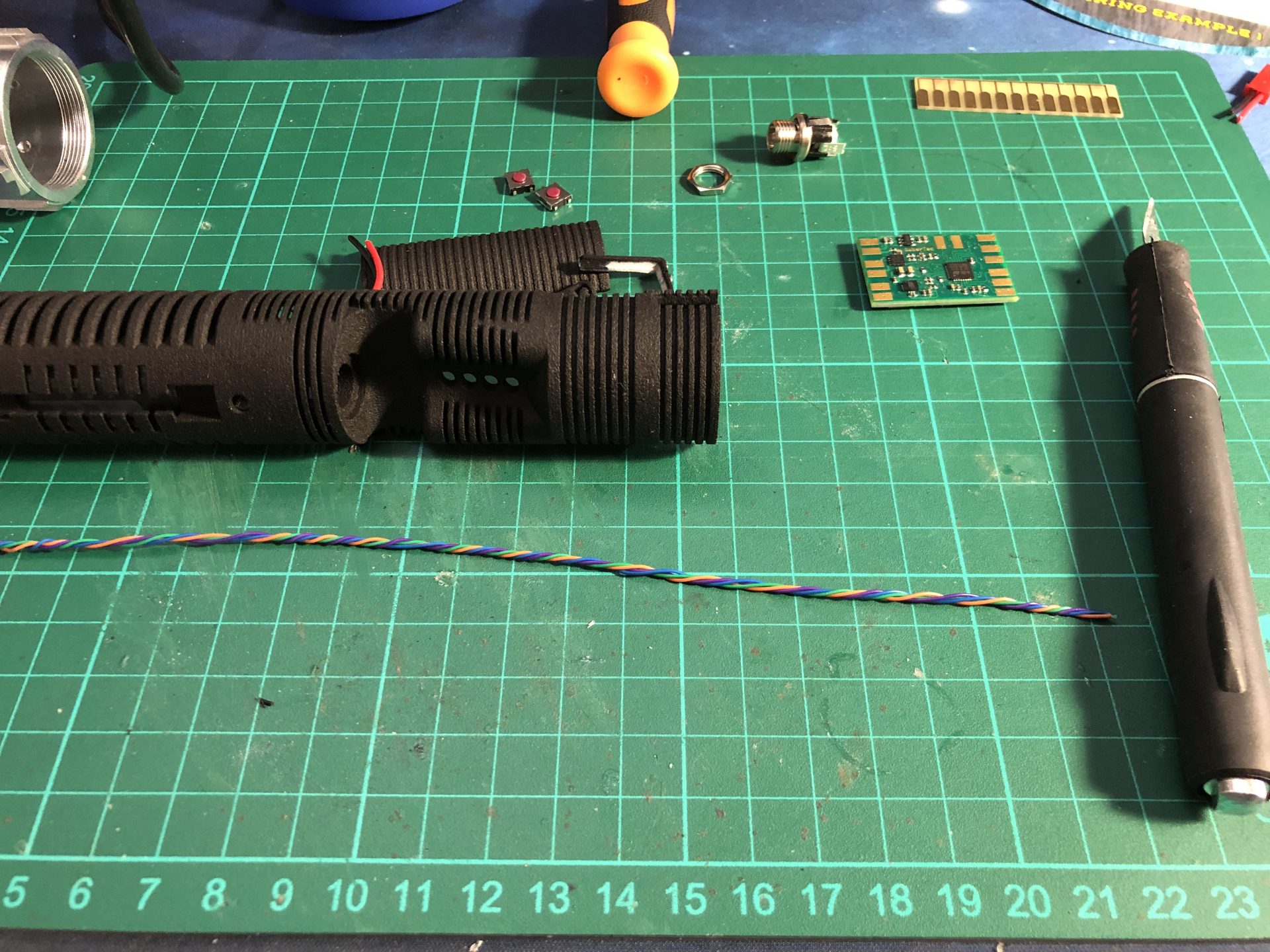

3- Electronic components:

Saber electronic components are basically more or less similar from one saber to another. You’ll need a main Led, a Battery, a recharge port, one or two switches, a soundboard, accent leds, a speaker and wires. Then the blade is the last part of your saber, they are usually made from PolyCarbonate tubes + tip.
You can find most of what you’ll need at The Saber Armory. Some components can also be found at The Saber Bay on Etsy. Local electronic shops or online stores like Digikey are also a good source.

Soundboard, MultiBoard Adaptive Chassis 4.0 – Compatible with NB, Prizm 5.1 and CF9 Plecter Labs , Naigon Electronic Creations I3, and also compatible with ProffieBoard.
Battery, 21700 battery
Recharge Port, 2.1mm switcraft (kill key included)
 Wires, we strongly recommend PTFE wires, as the insulation is thin while still able to handle current very well. You can find them from this eBay shop for example. Use the smallest AWG size possible:
– Tri-Cree install => 30awg for eveything
– Neopixel install => 32 awg wires for everything except Battery and Neopixel strip + and – (24awg PTFE).
 Main Led, Tri-Cree XPE-2 or Neopixel
 Heatsink, Clan Sabers 1″ heatsink (Here) or Neopixel connector (here)
 Switch, 2x tactile switch (example)
 Speaker, 28mm bass speaker
1″ OD blades


Installation instructions:

– These instructions will details the install procedure as much as possible. GOTH-3Designs cannot be held responsible for any mistakes made by DIYers.
– Always wear protective gear when working on install (gloves, eye protection, …), GOTH-3Designs cannot be held responsible in case of accident.

Note 1: Use small wires – PTFE wires are recommended. 30awg for tri-cree or 24awg for Neopixel. 32awg for accent leds and switches.

Note 2: These instructions will not cover how to wire the soundboard, make sure to learn how to by reading the soundboard manual.

Note 3: Recharge port wiring reminder:

Note 4: Multiboards Adaptive Chassis

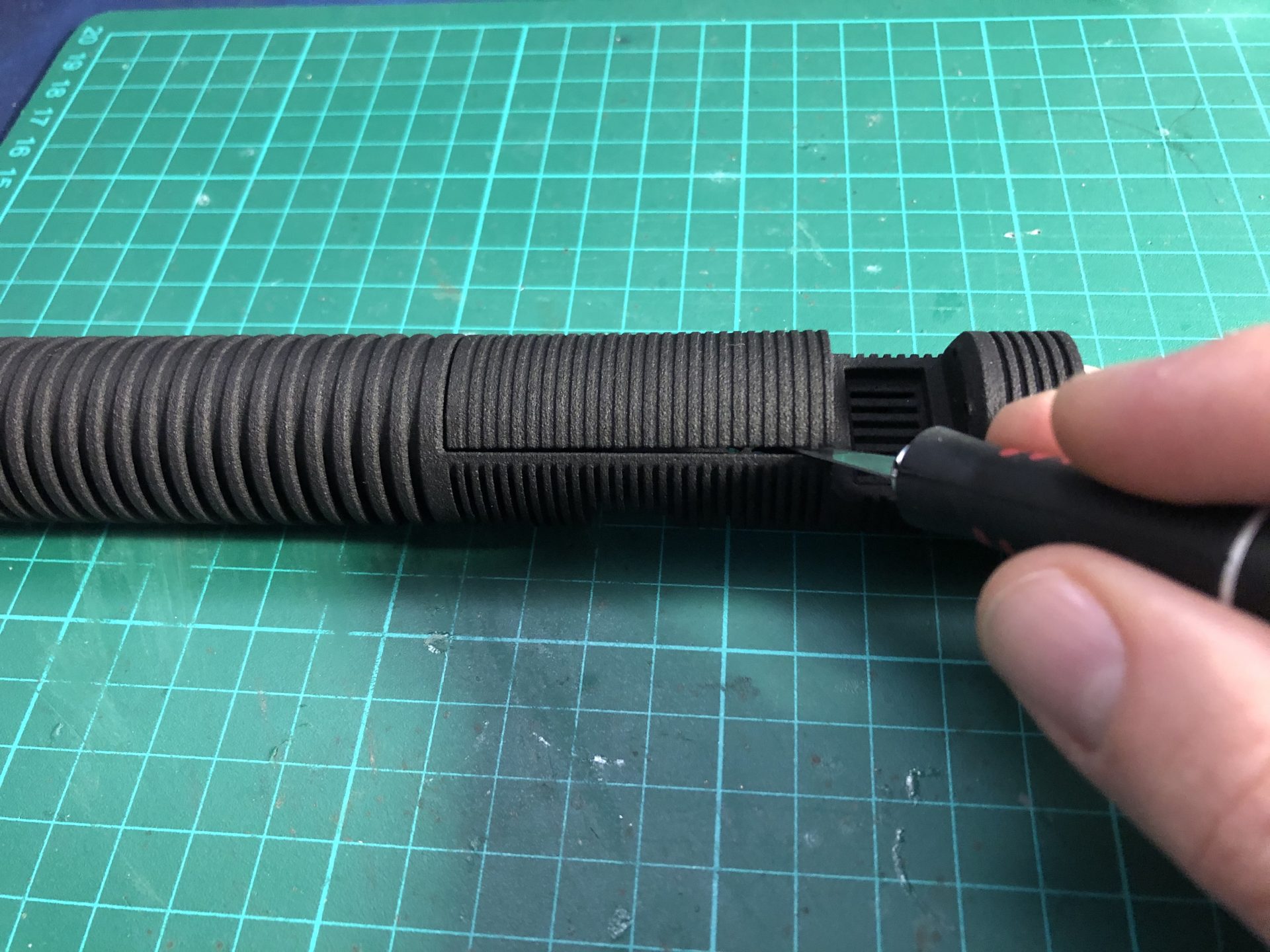

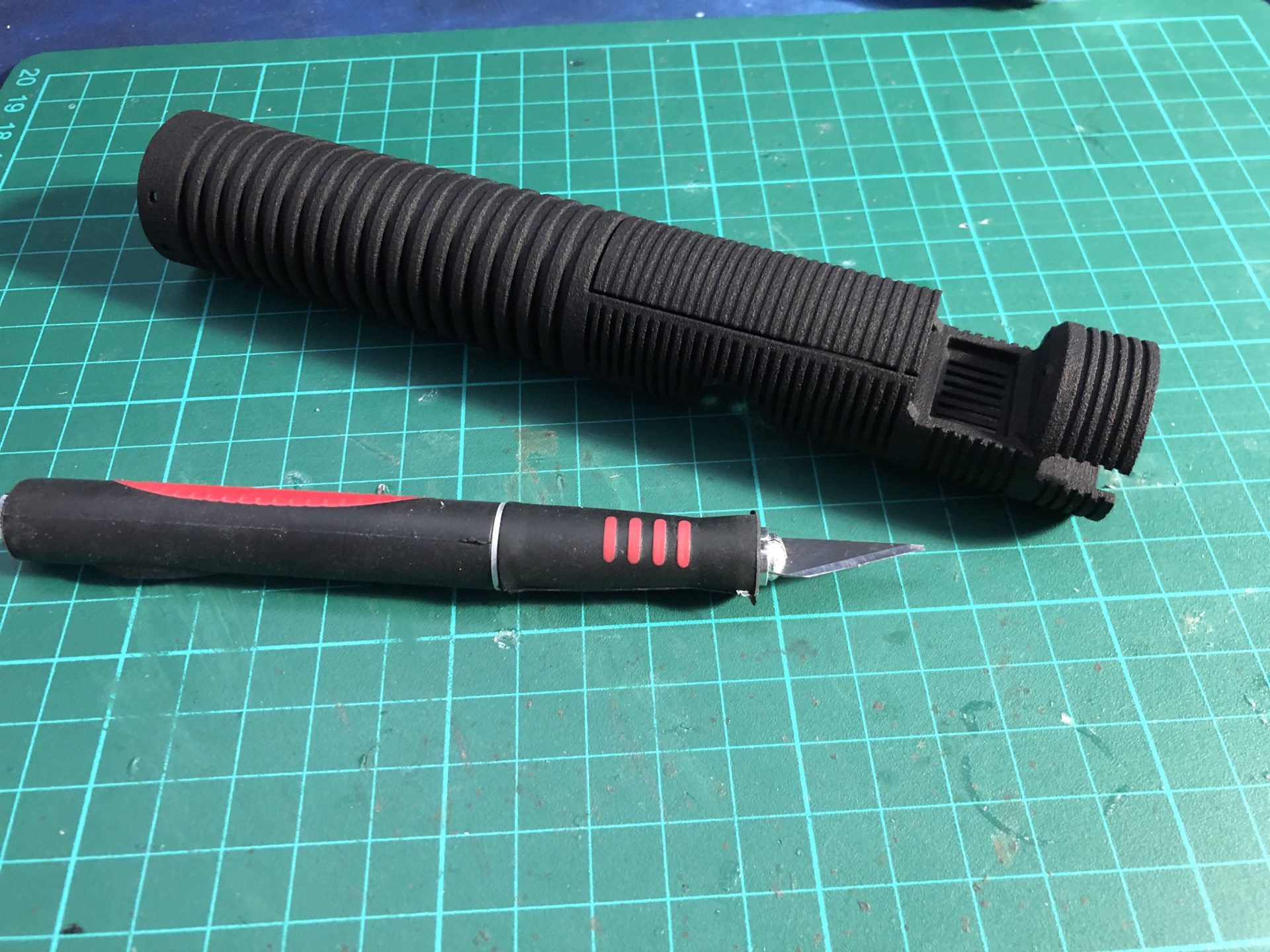

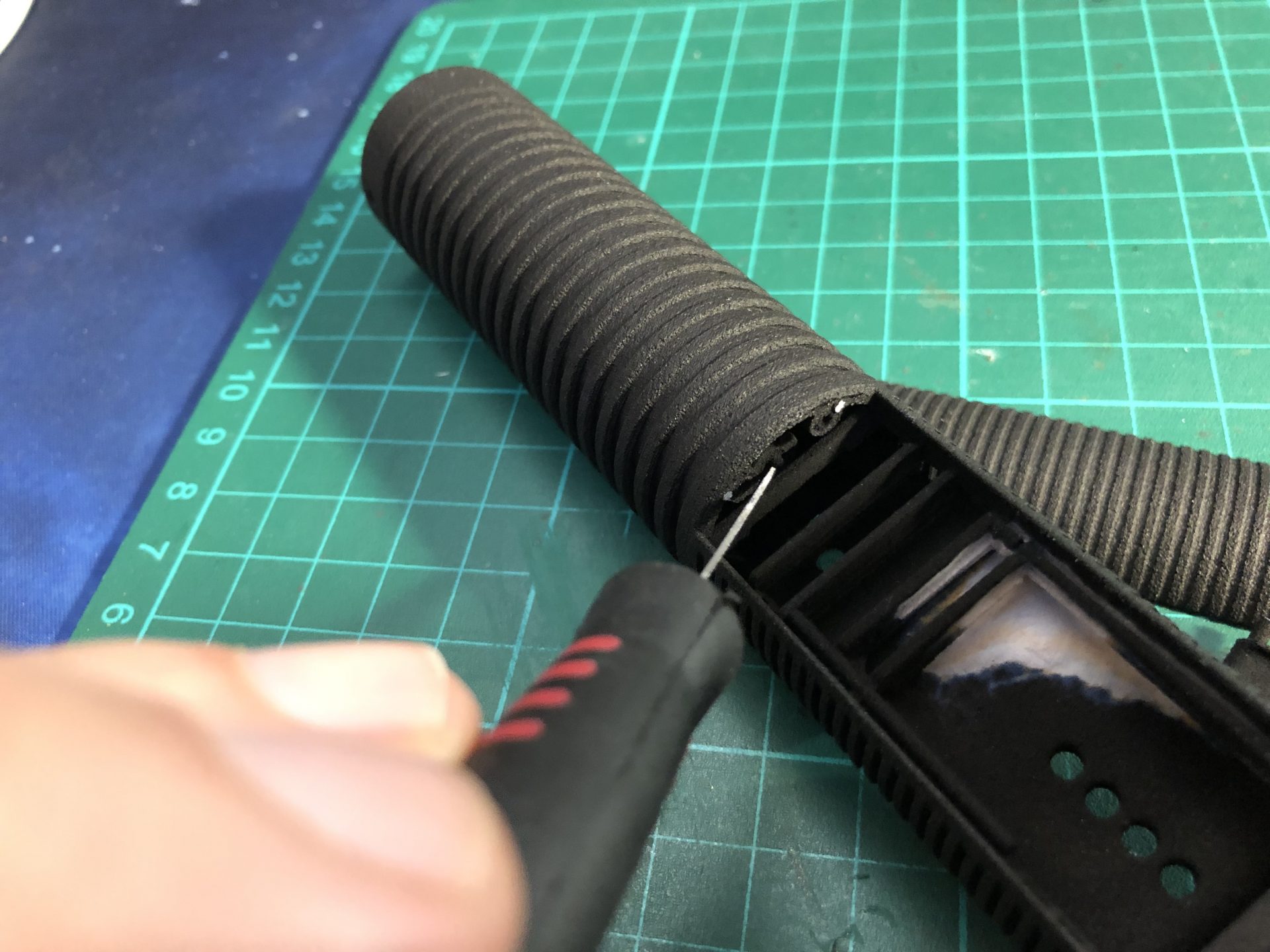

Use an Exacto knife to carefully cut the right slot for the soundboard

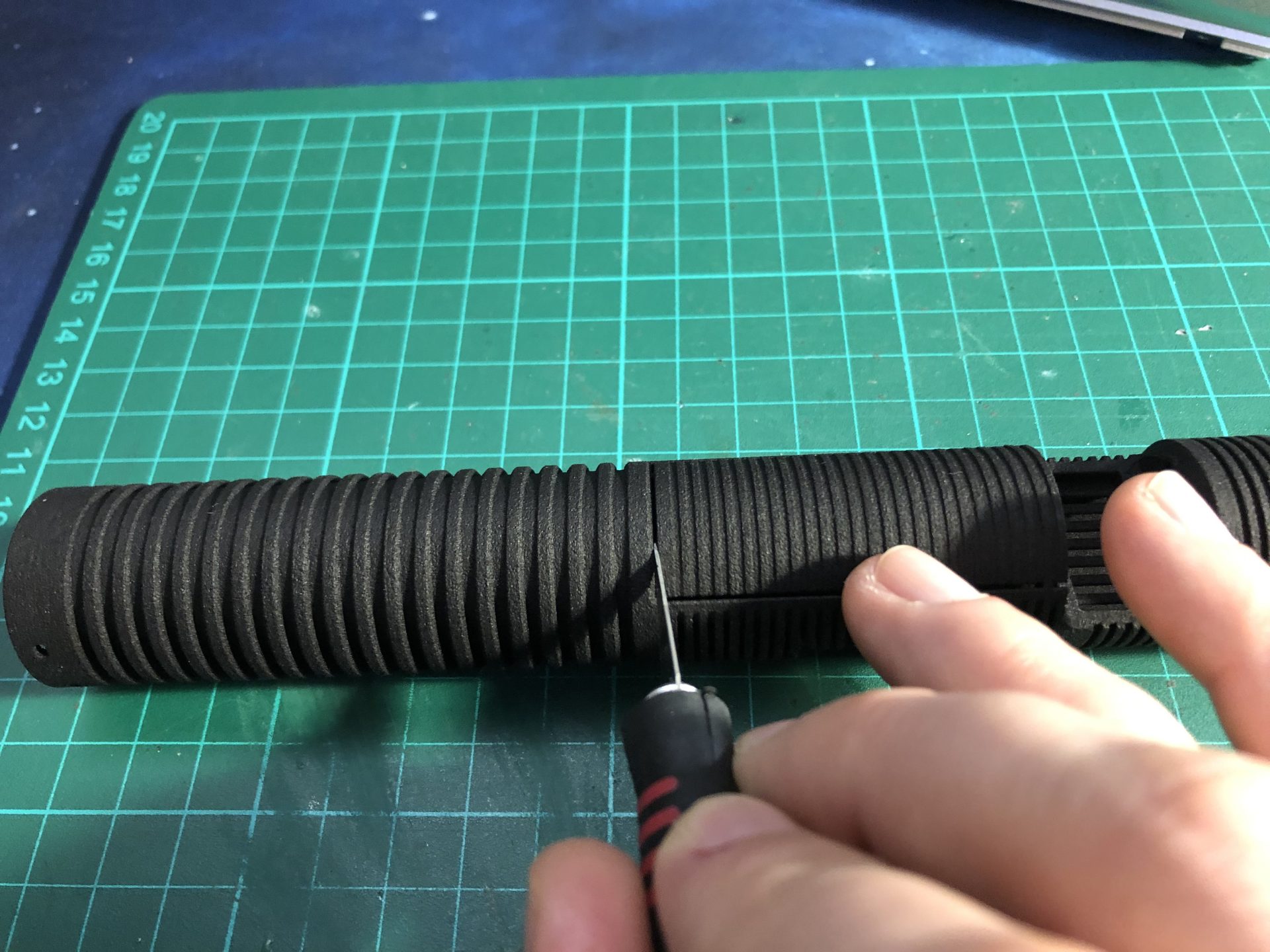

The cover needs to be cut, as shown below

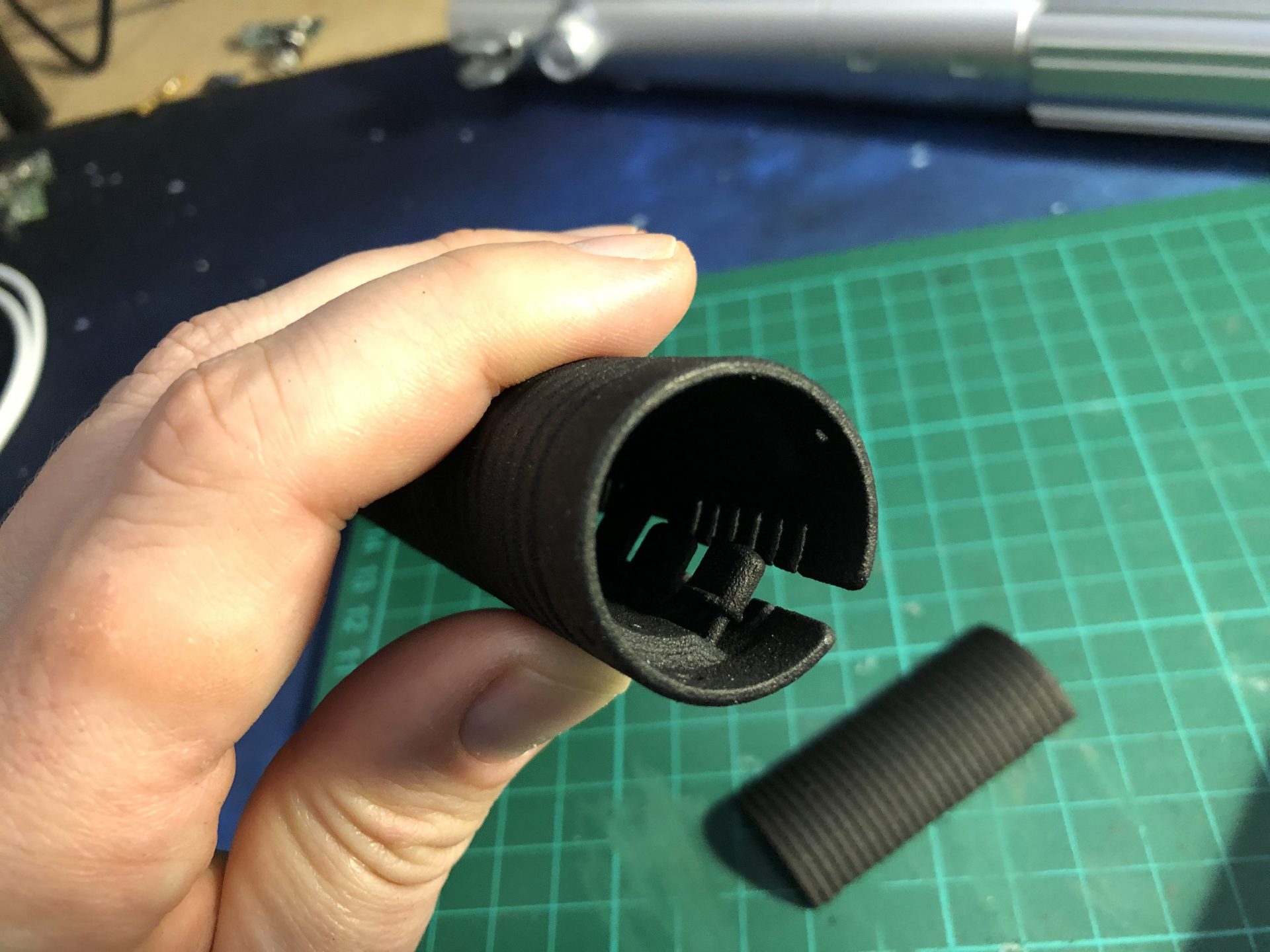

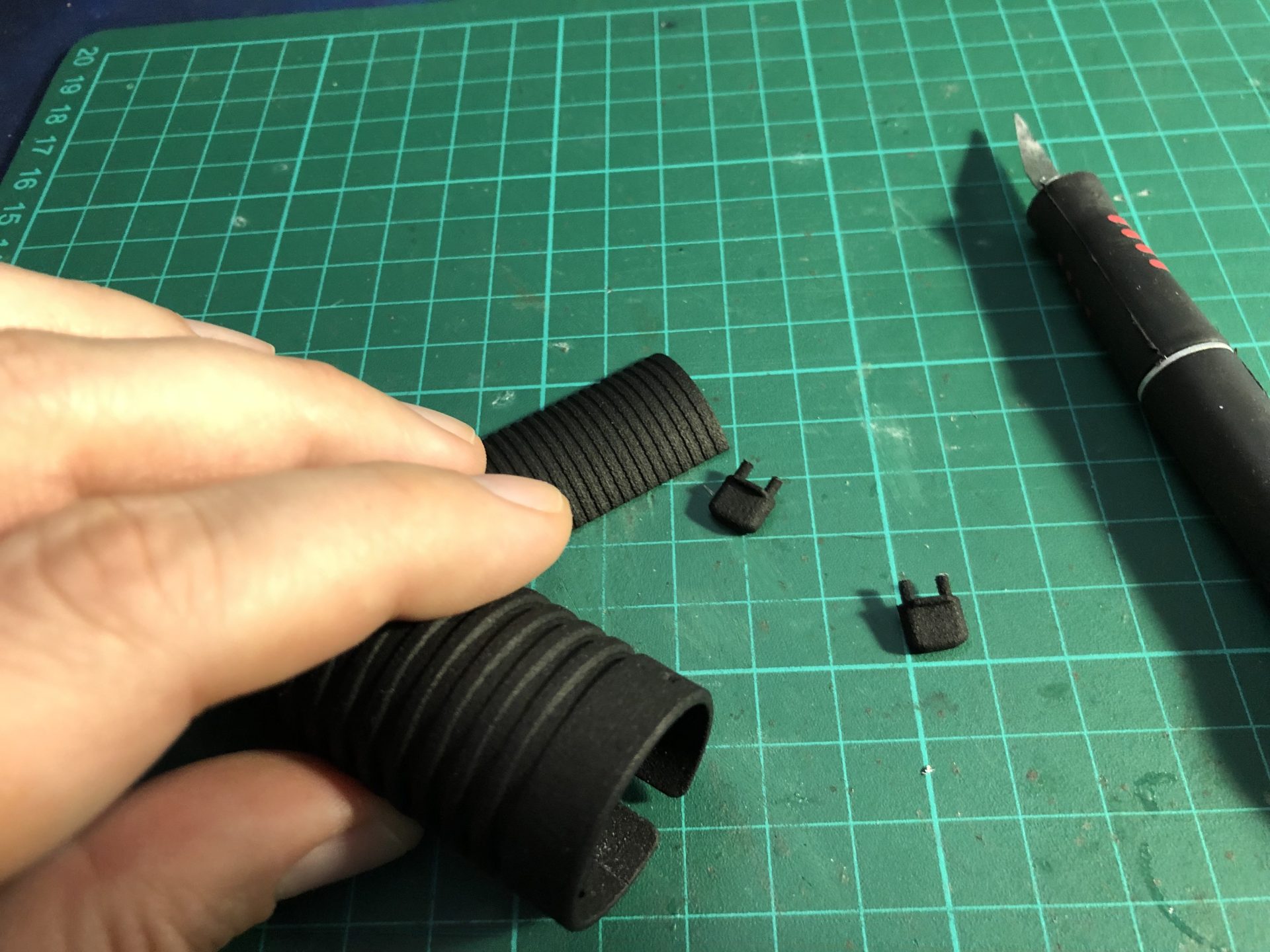

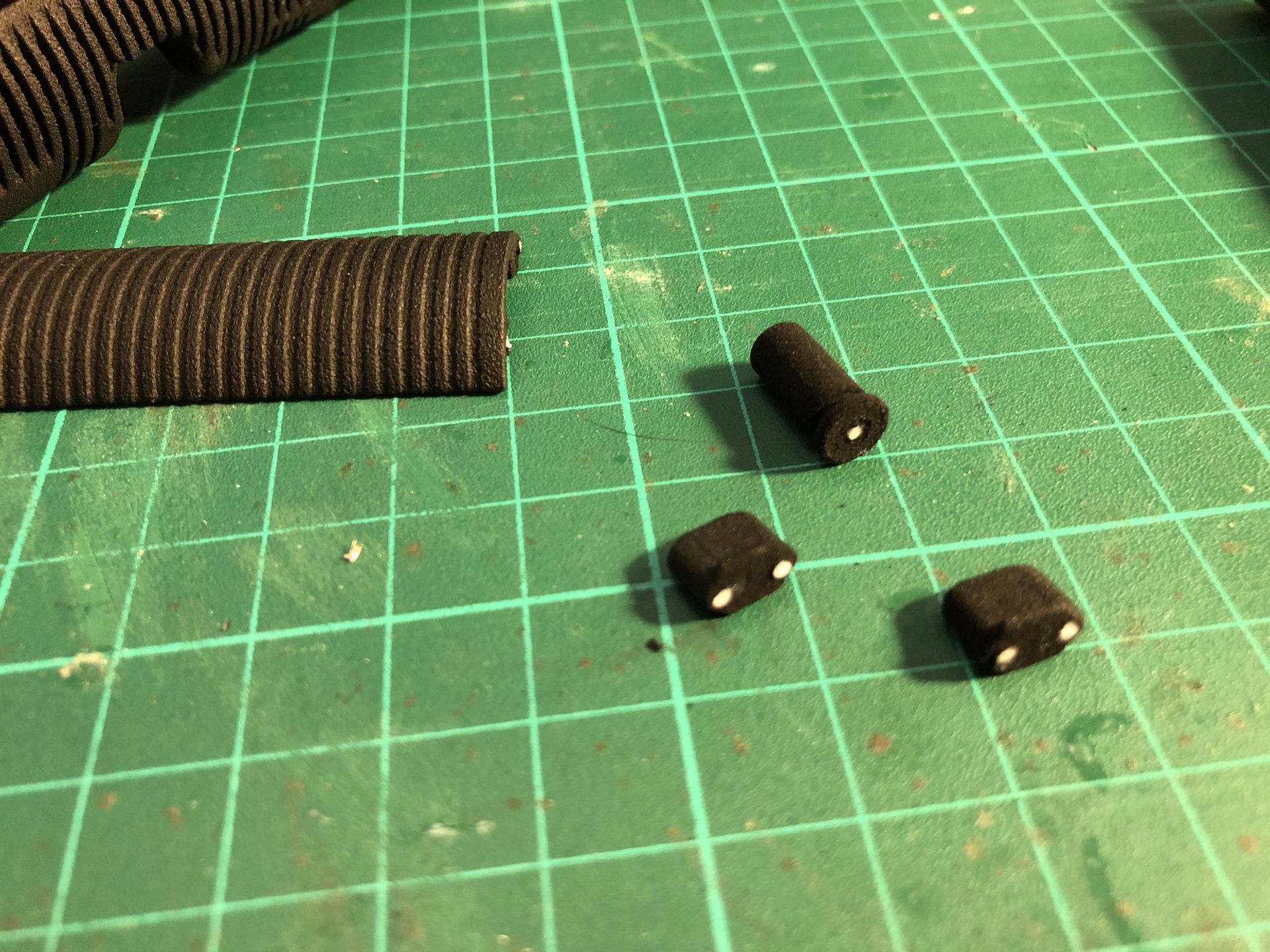

The switches plungers also need to be cut, as shown below

Finally, cut the kill key, located as show below

Cut the MAC pattern according to the soundboard to be installed

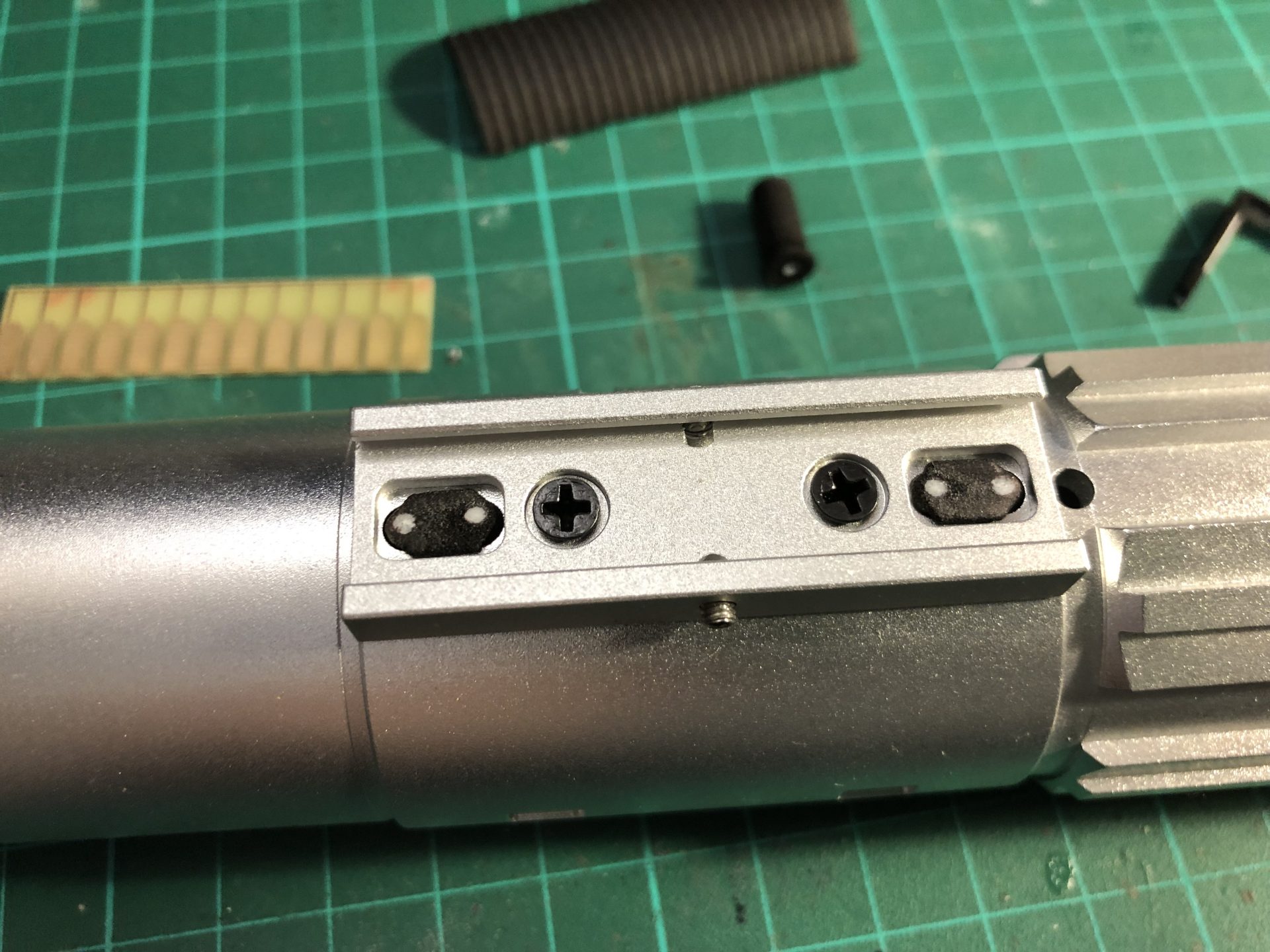

Here is where the plungers go

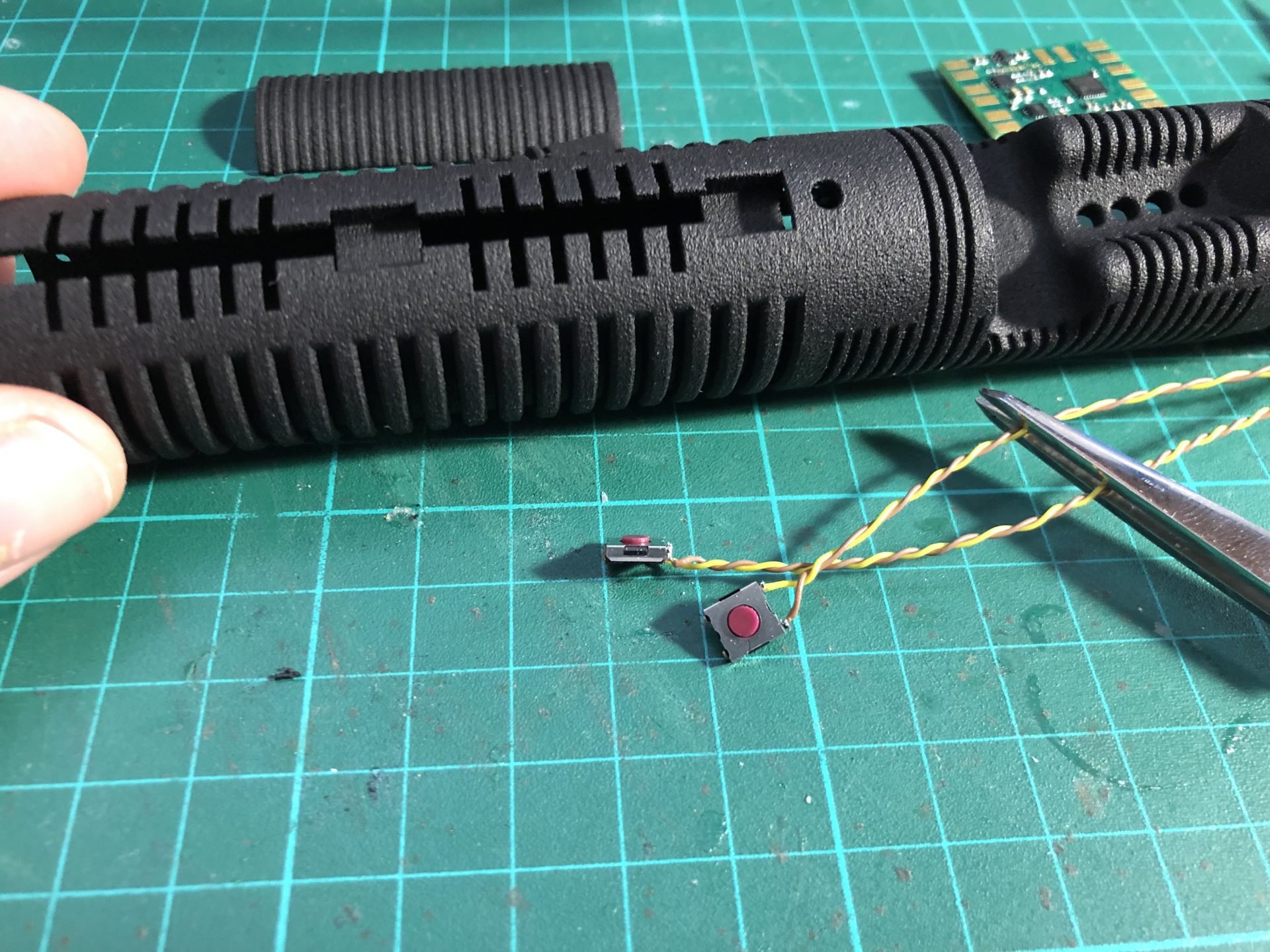

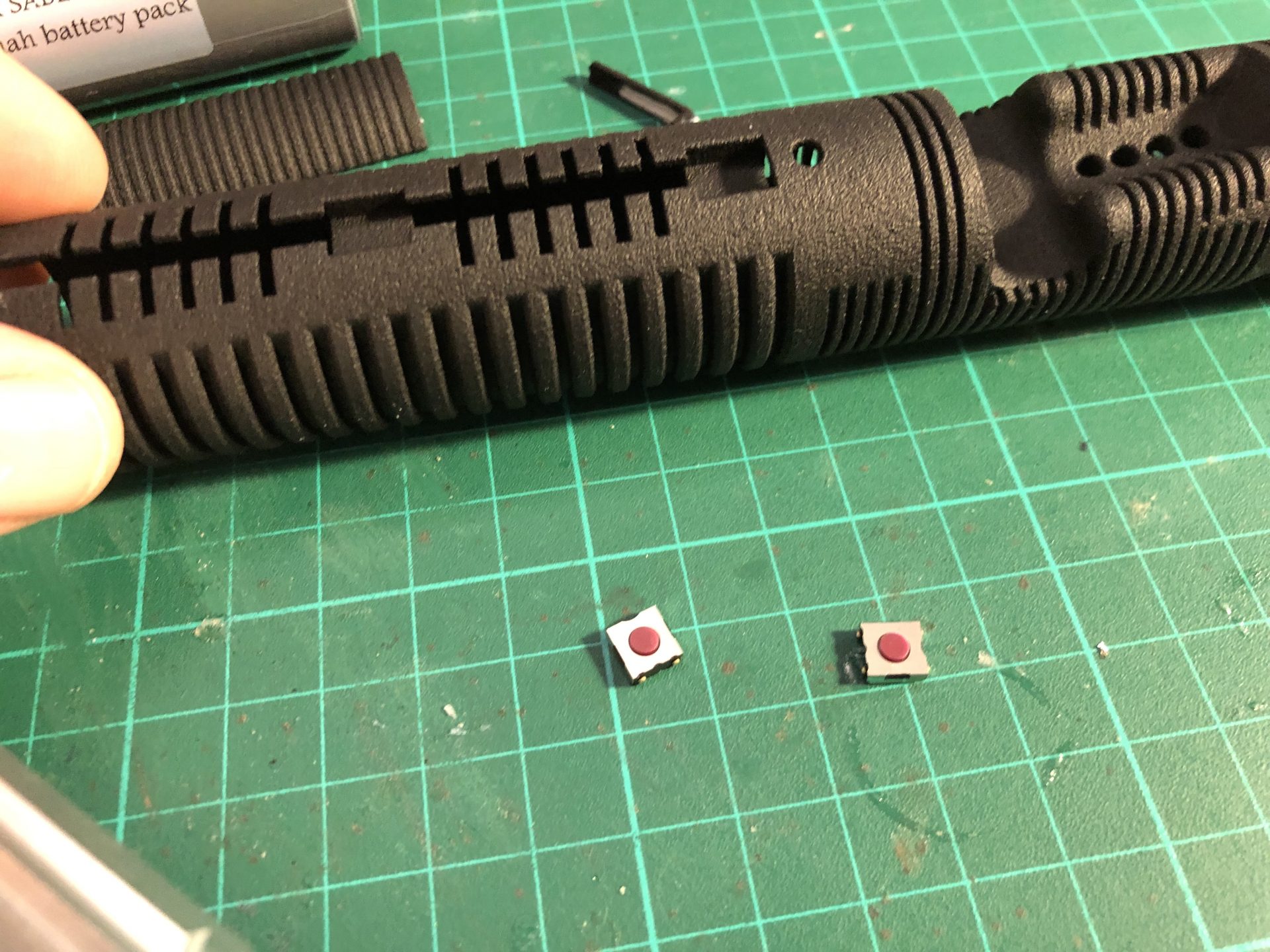

Install the tactile switches, it the middle of their respective slots

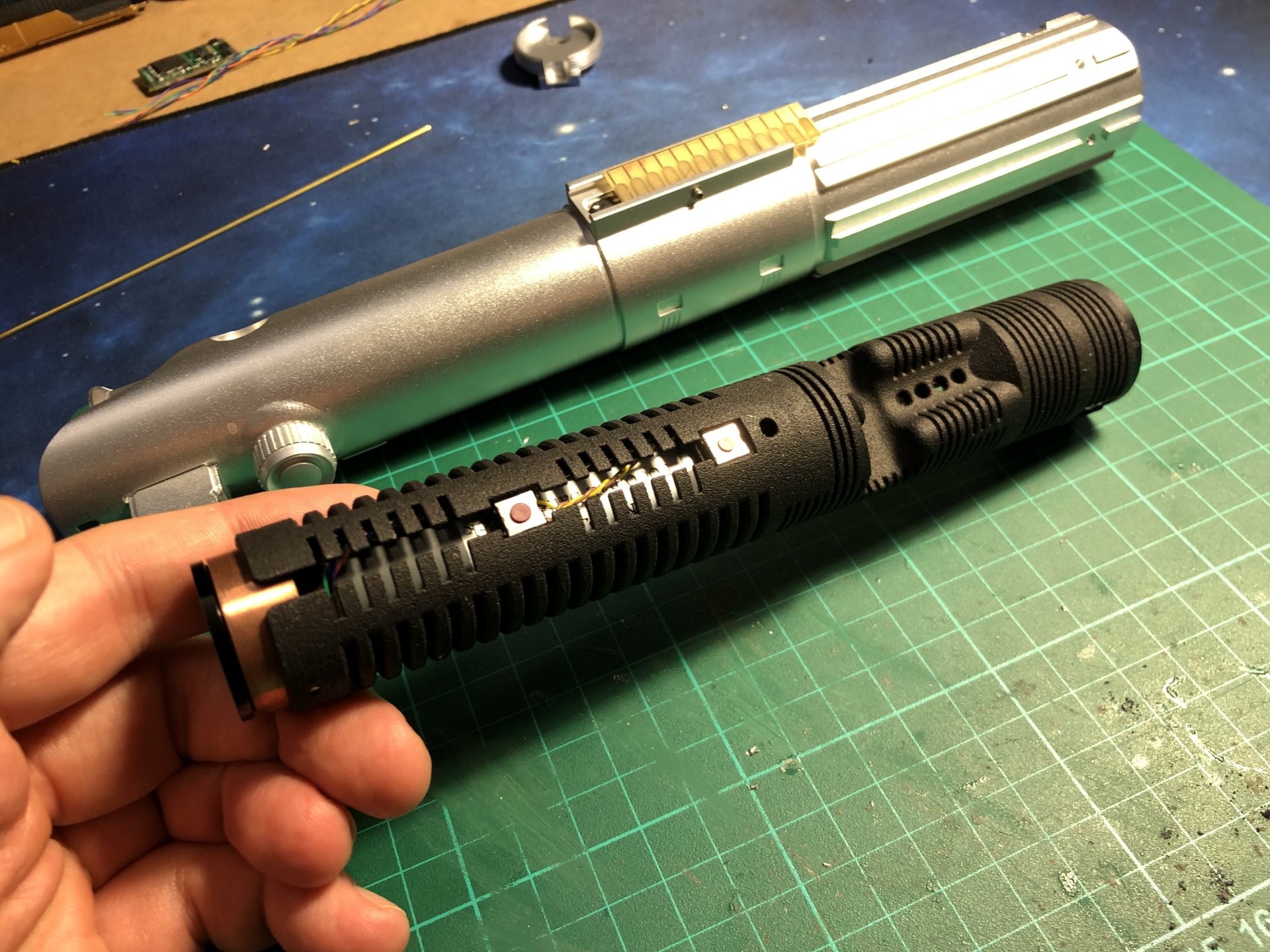

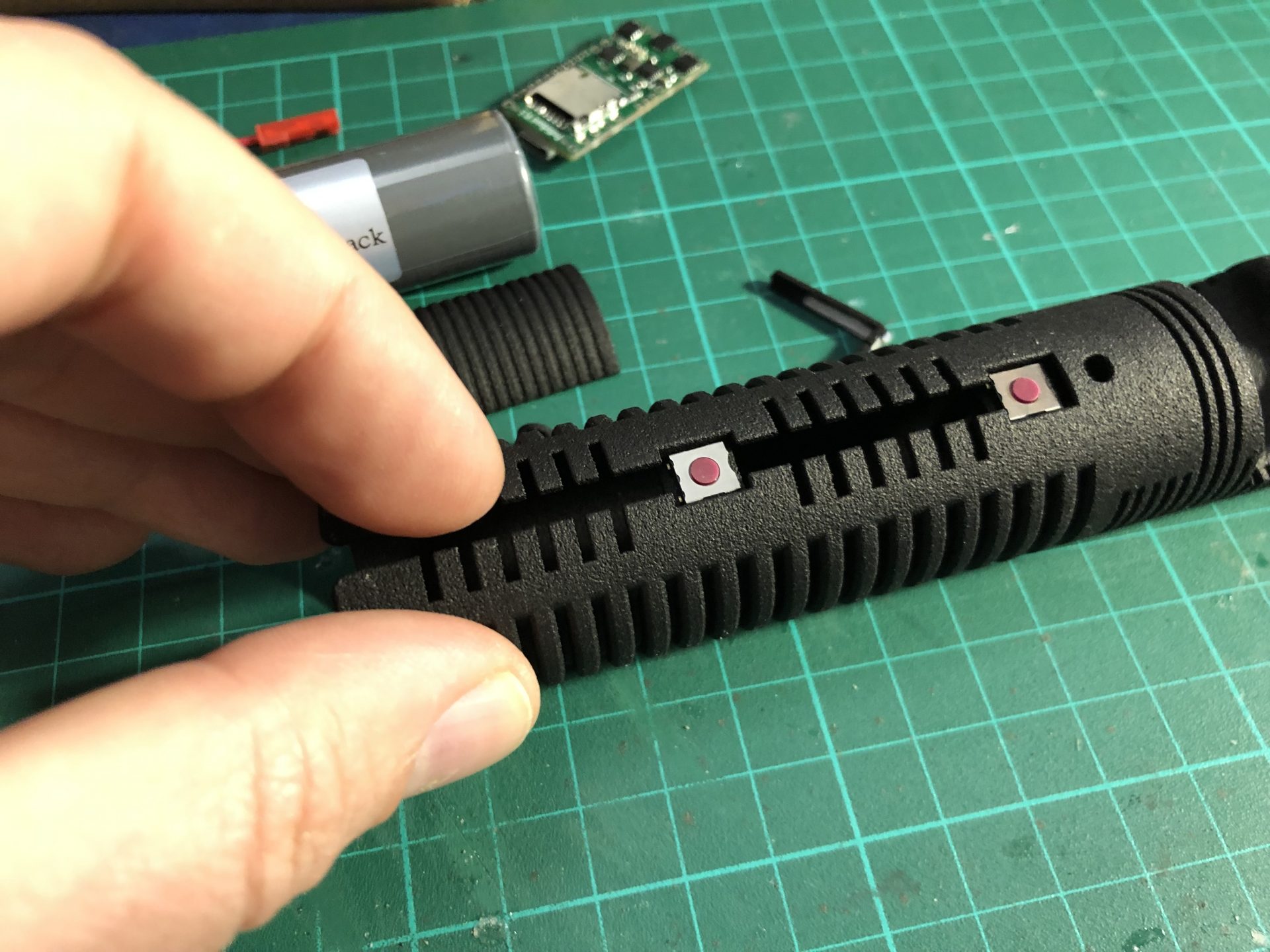

Make sure they fall in the middle of the hilt windows

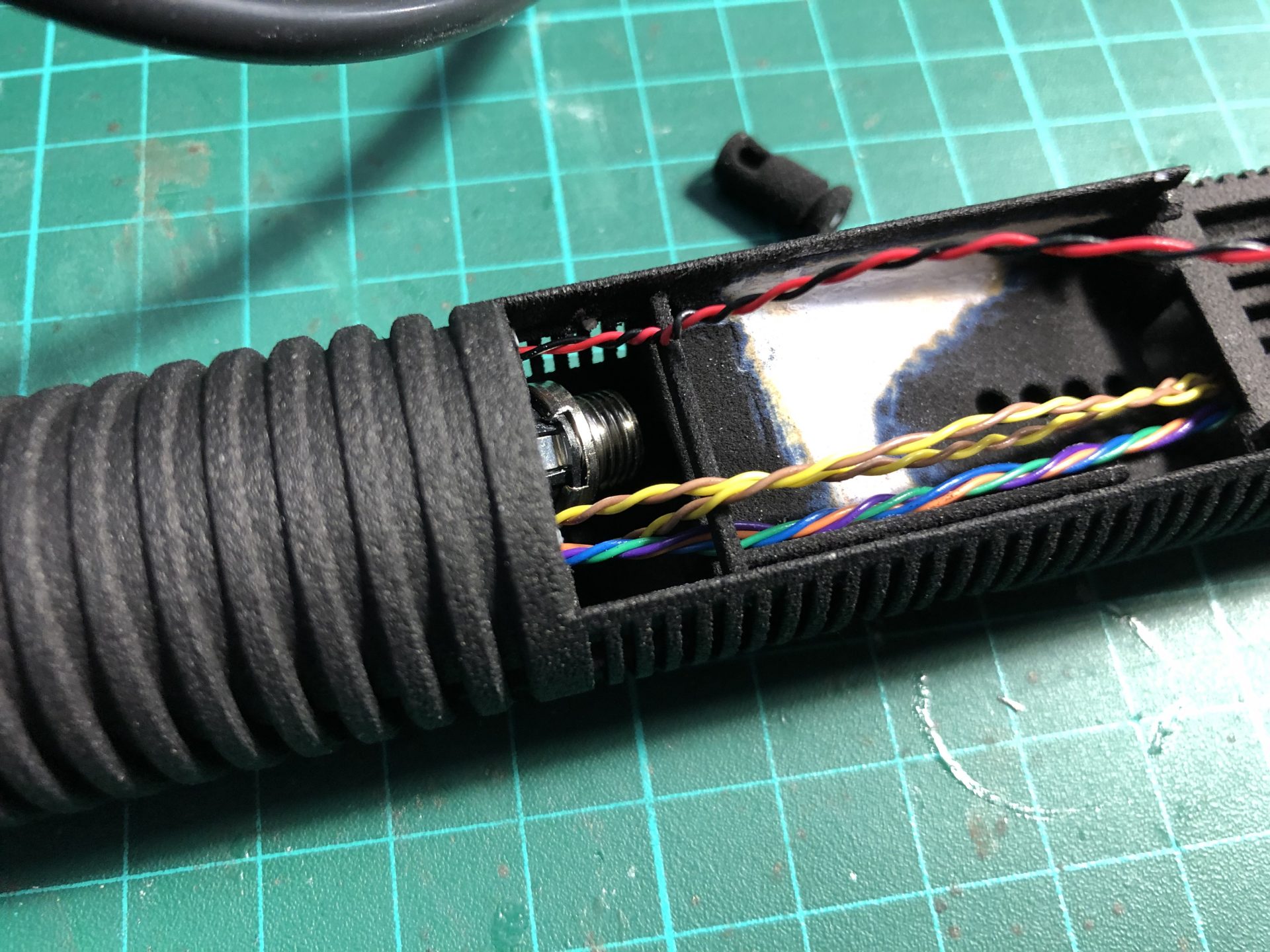

Add the wires for the main led of neopixel connector

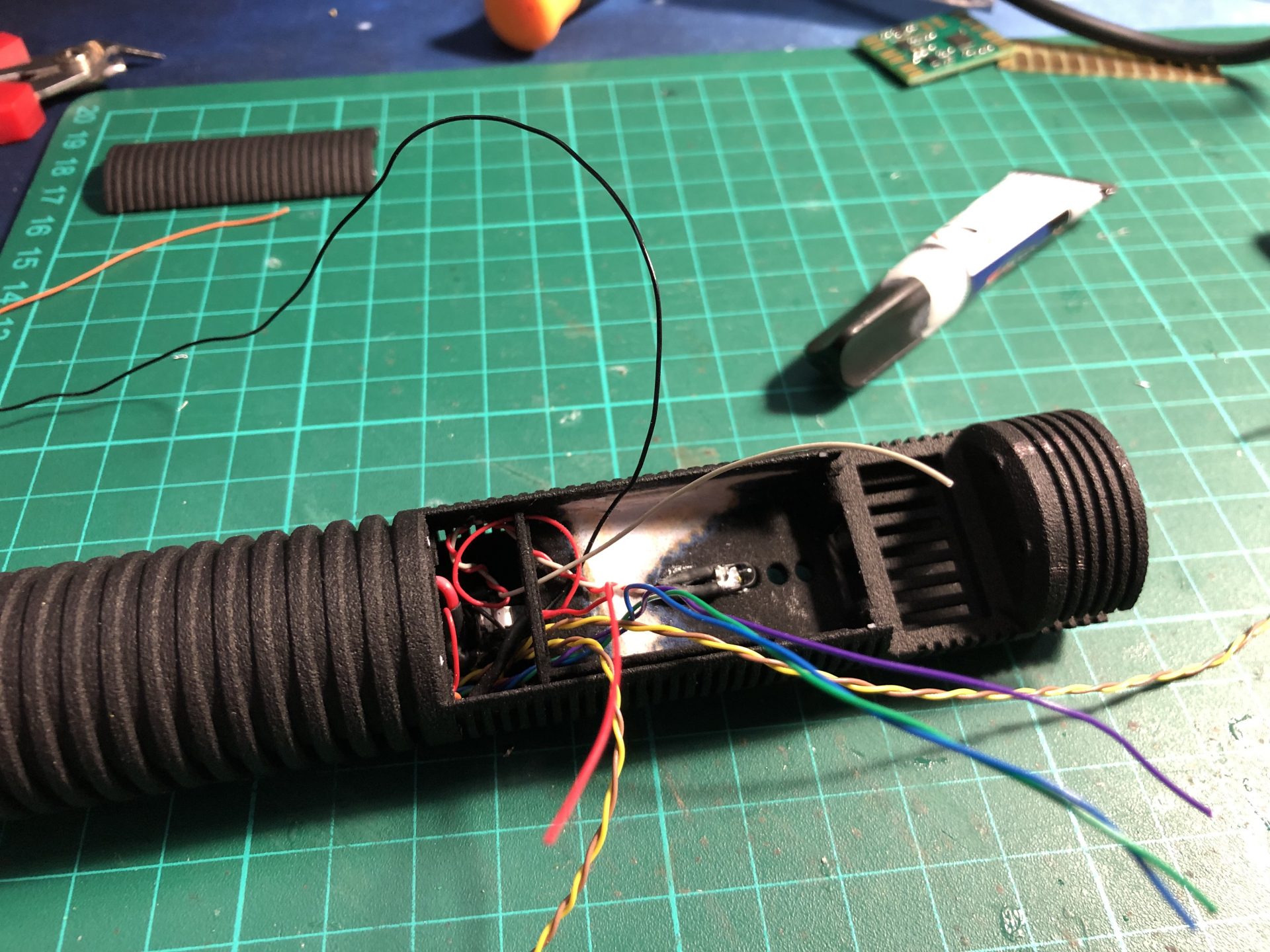

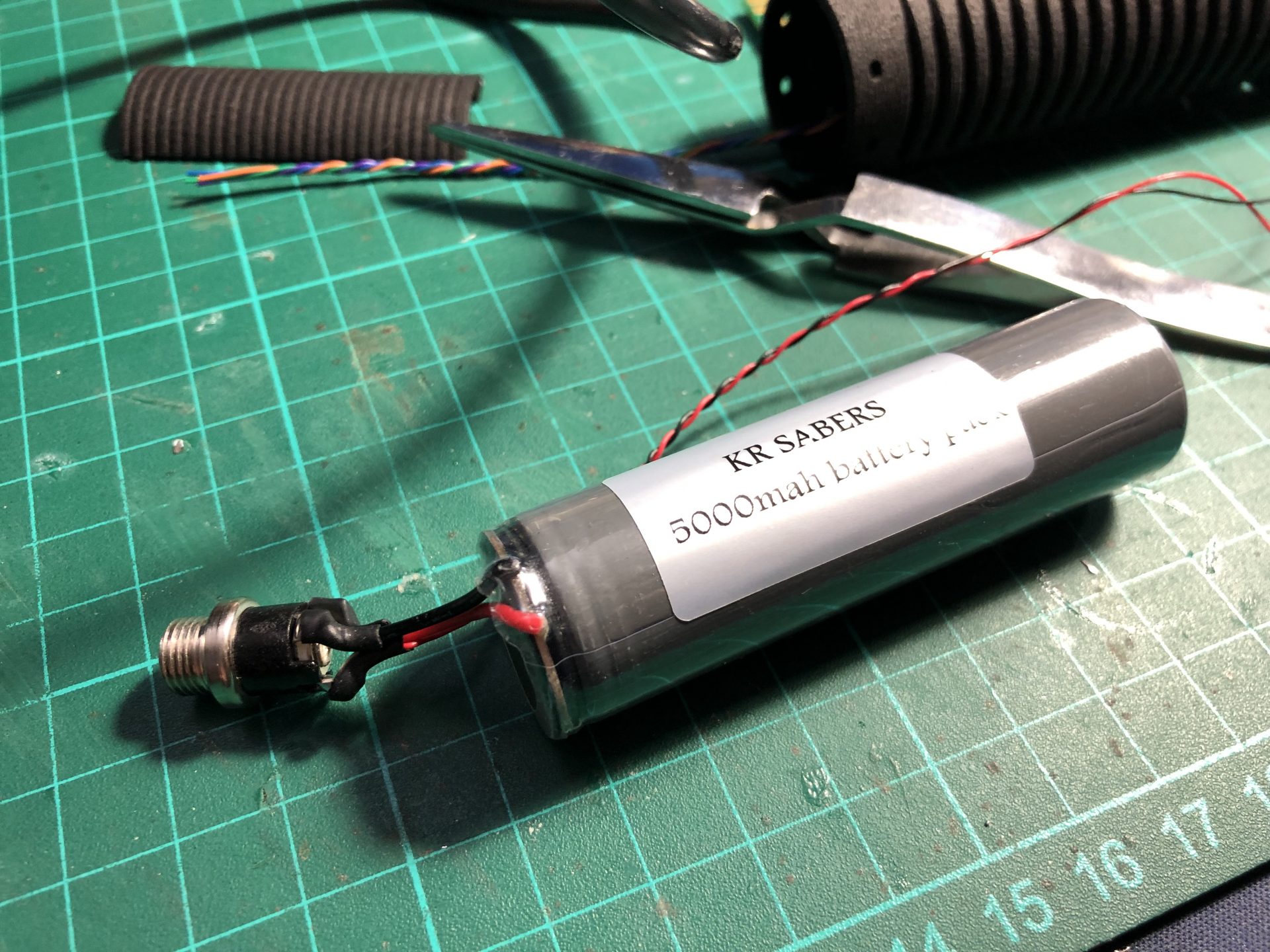

Wire the battery and recharge port as shown below

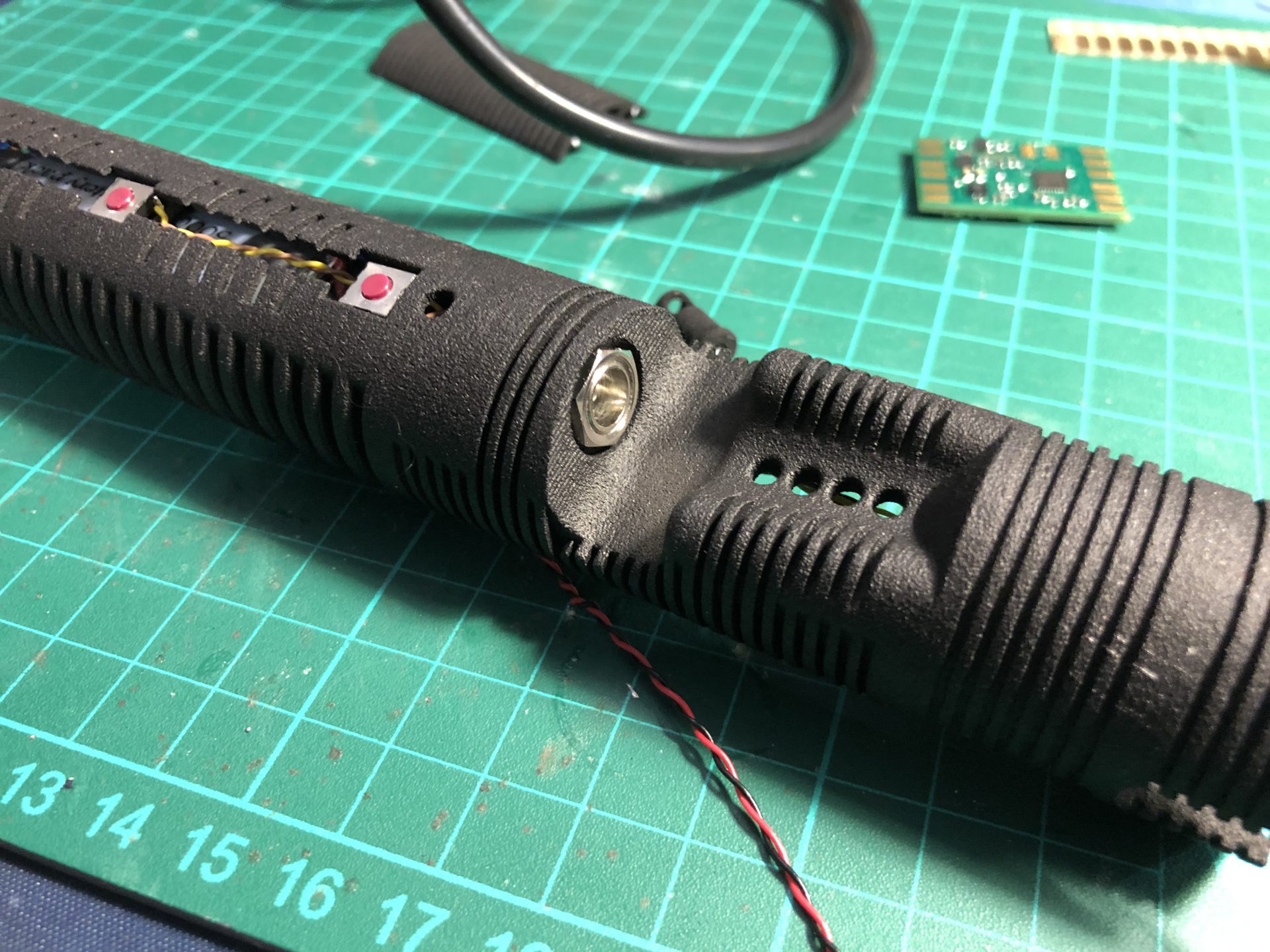

Slide the battery in, and insert the recharge port in its slot, then add the hex nut to secure it.

A bit of glue can be added to secure the battery

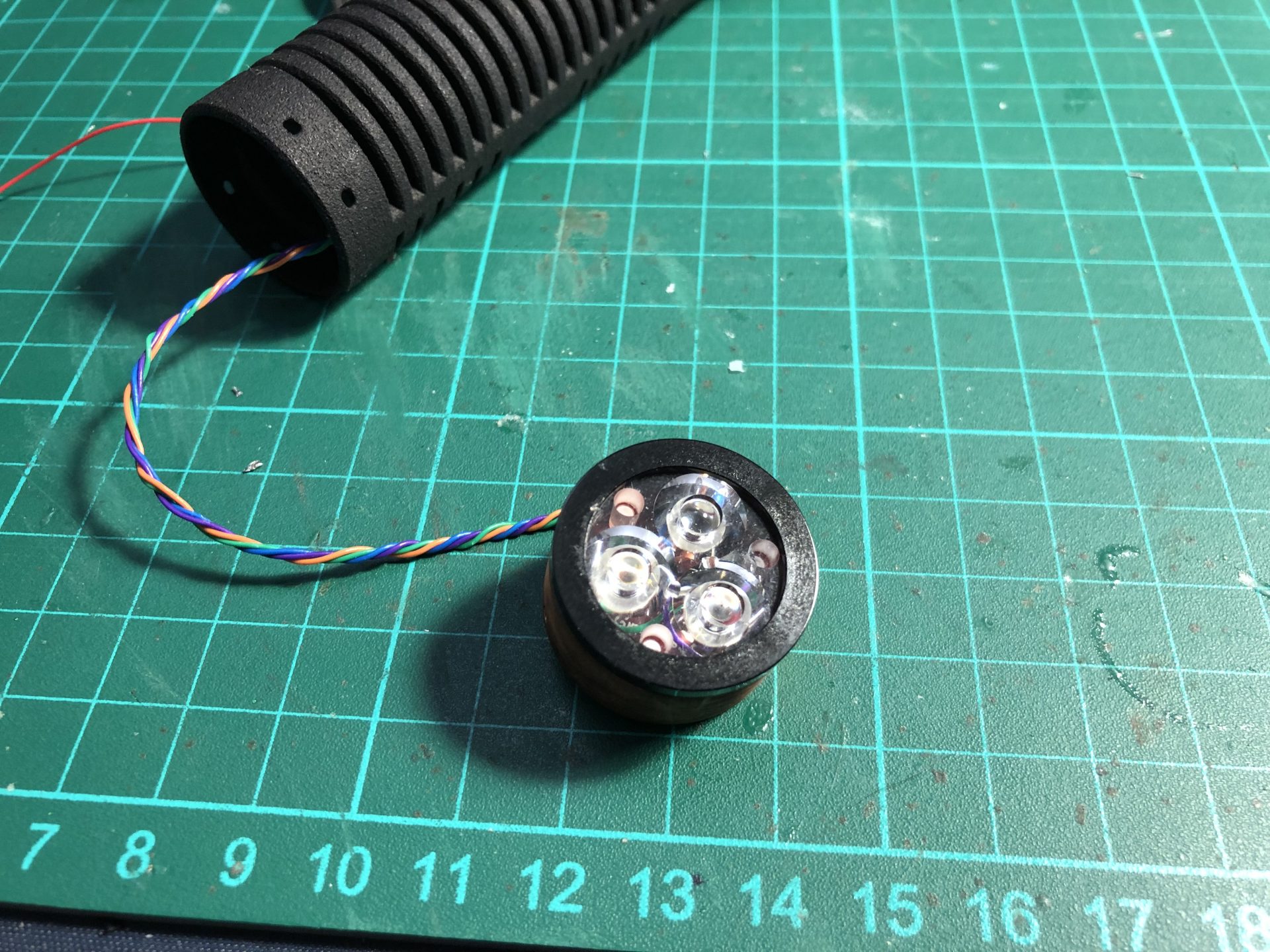

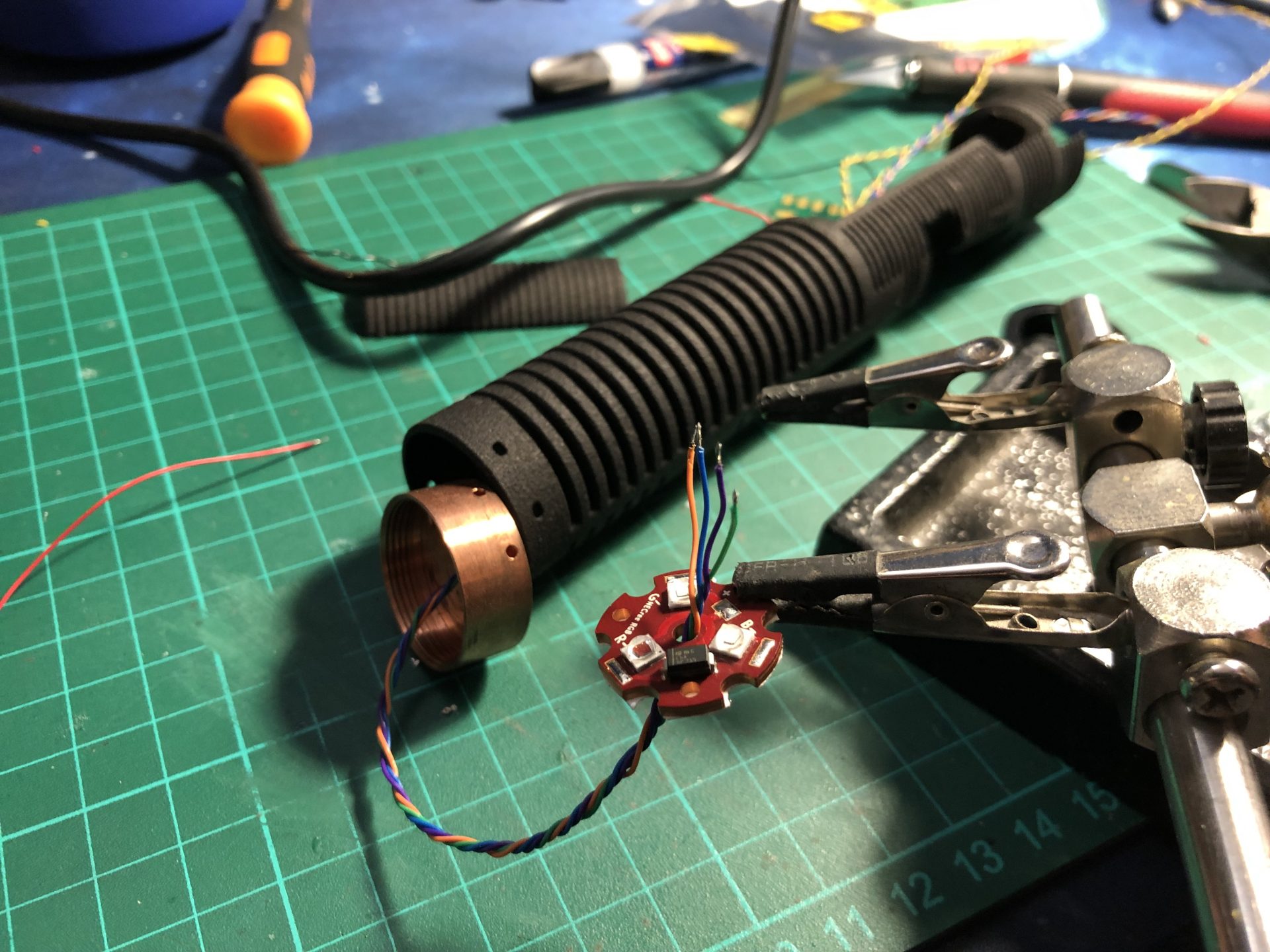

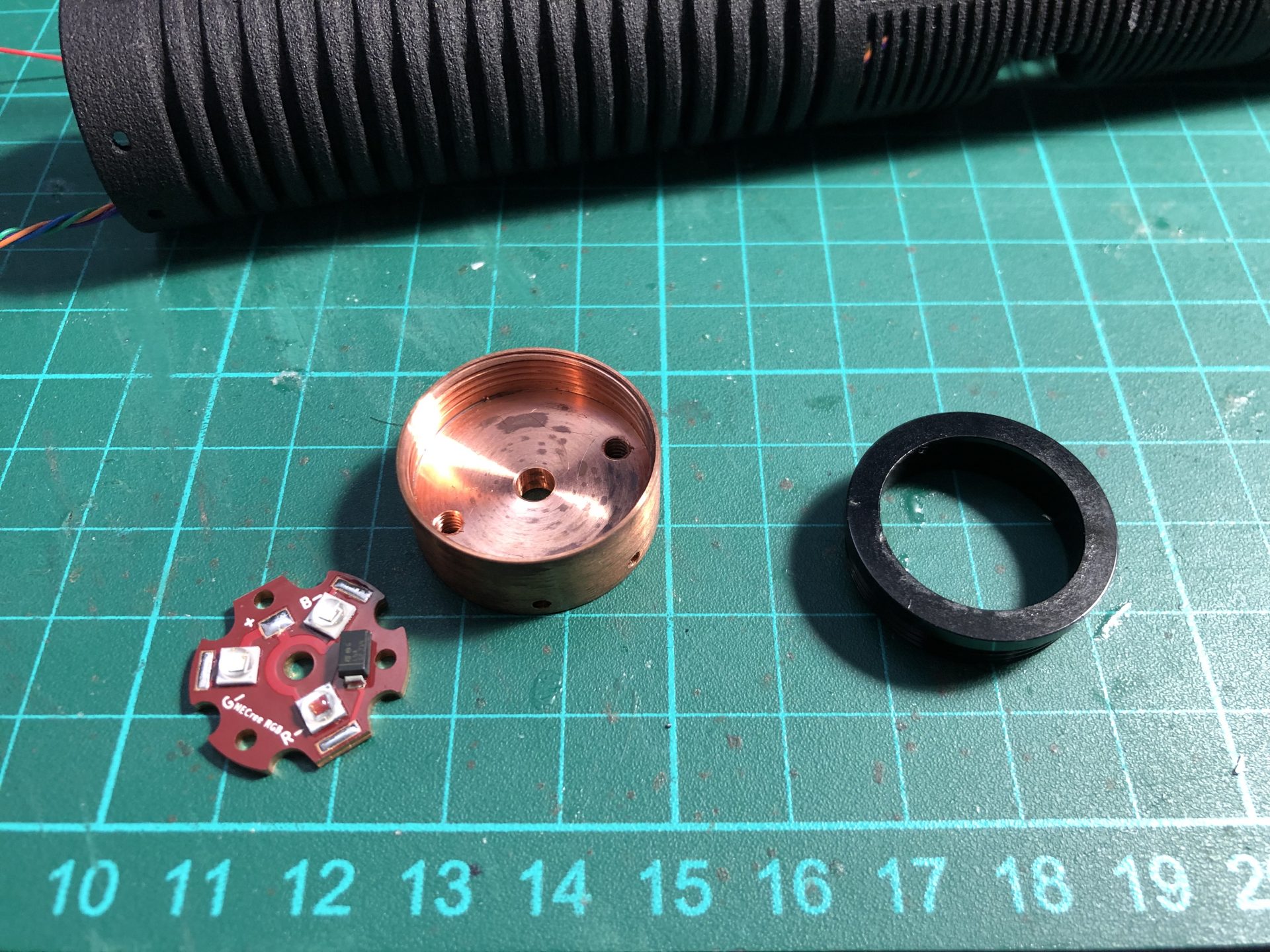

Install the led or Neopixel connector

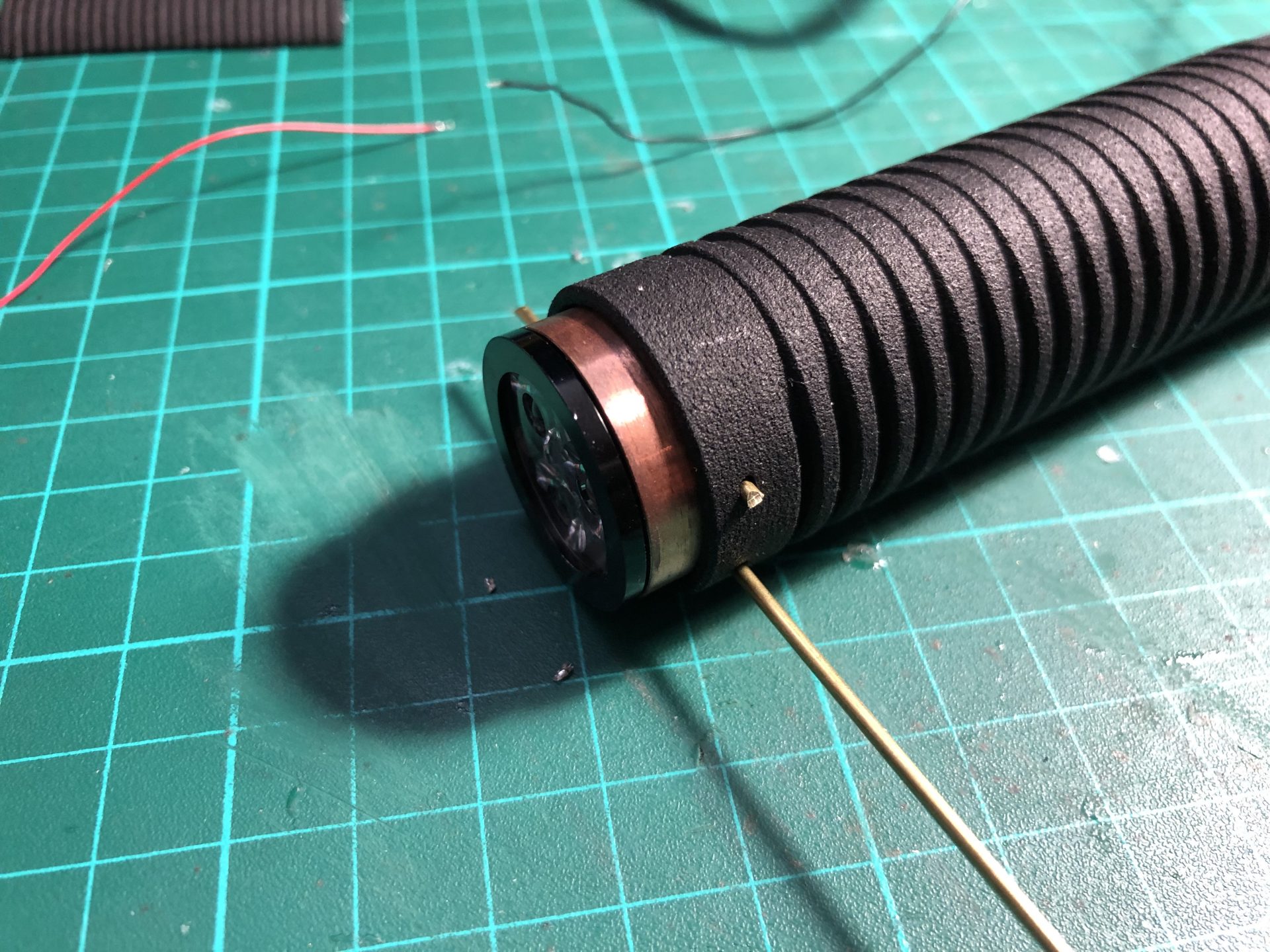

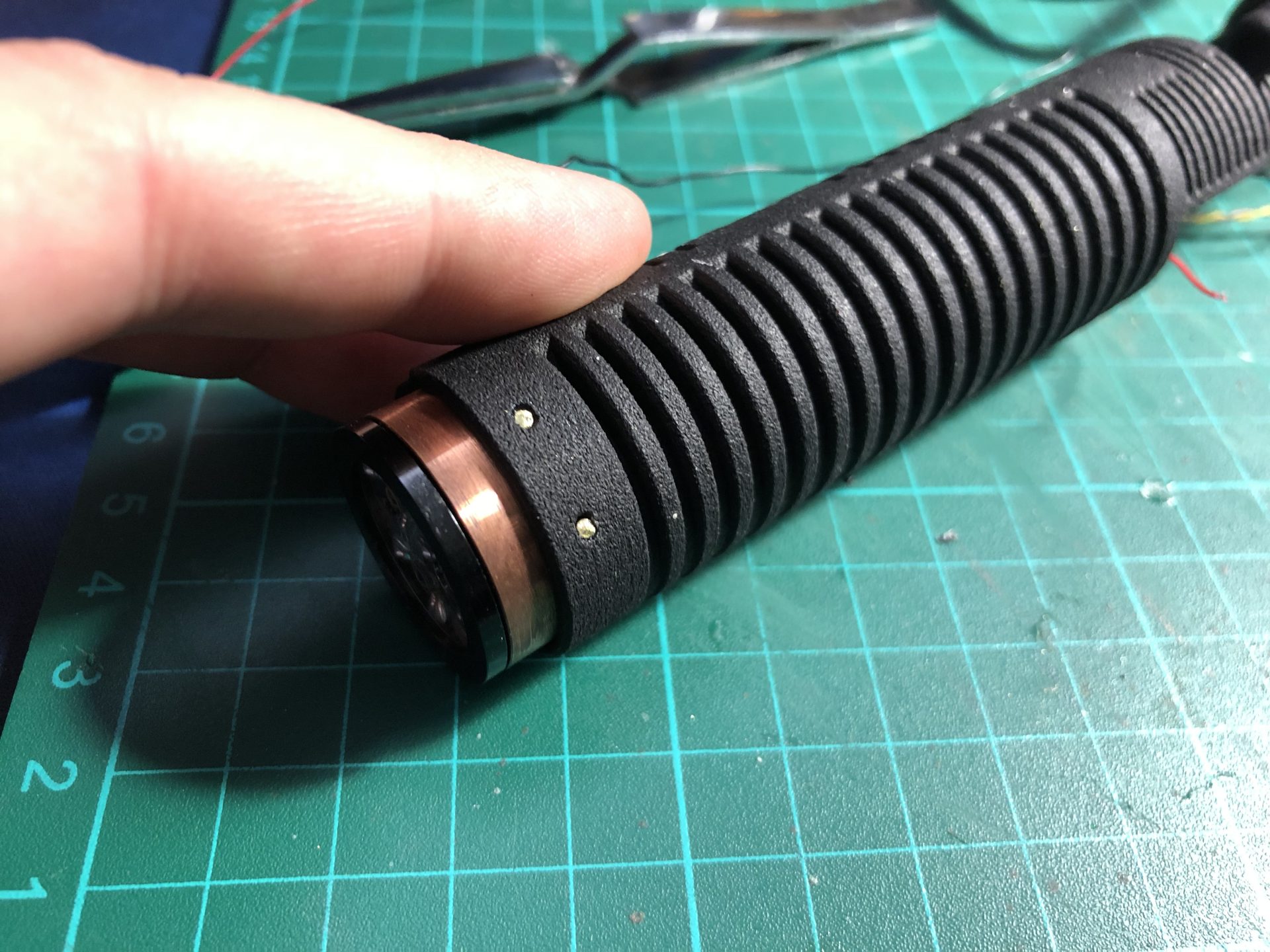

The Heatsink or Neopixel connector are secured on the chassis as follow, using two 1.5mmOD rods

Accent leds can be added under the soundboard

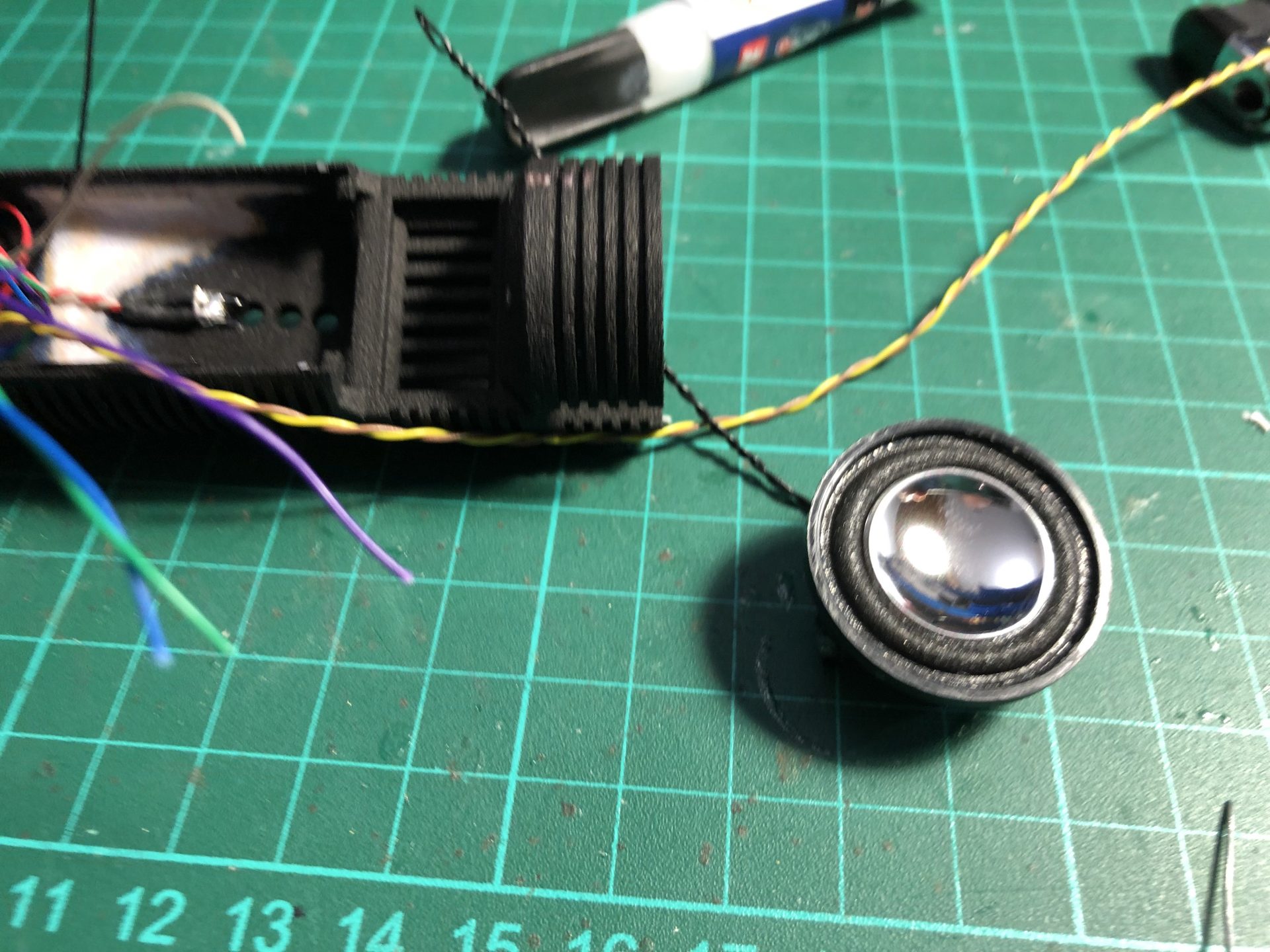

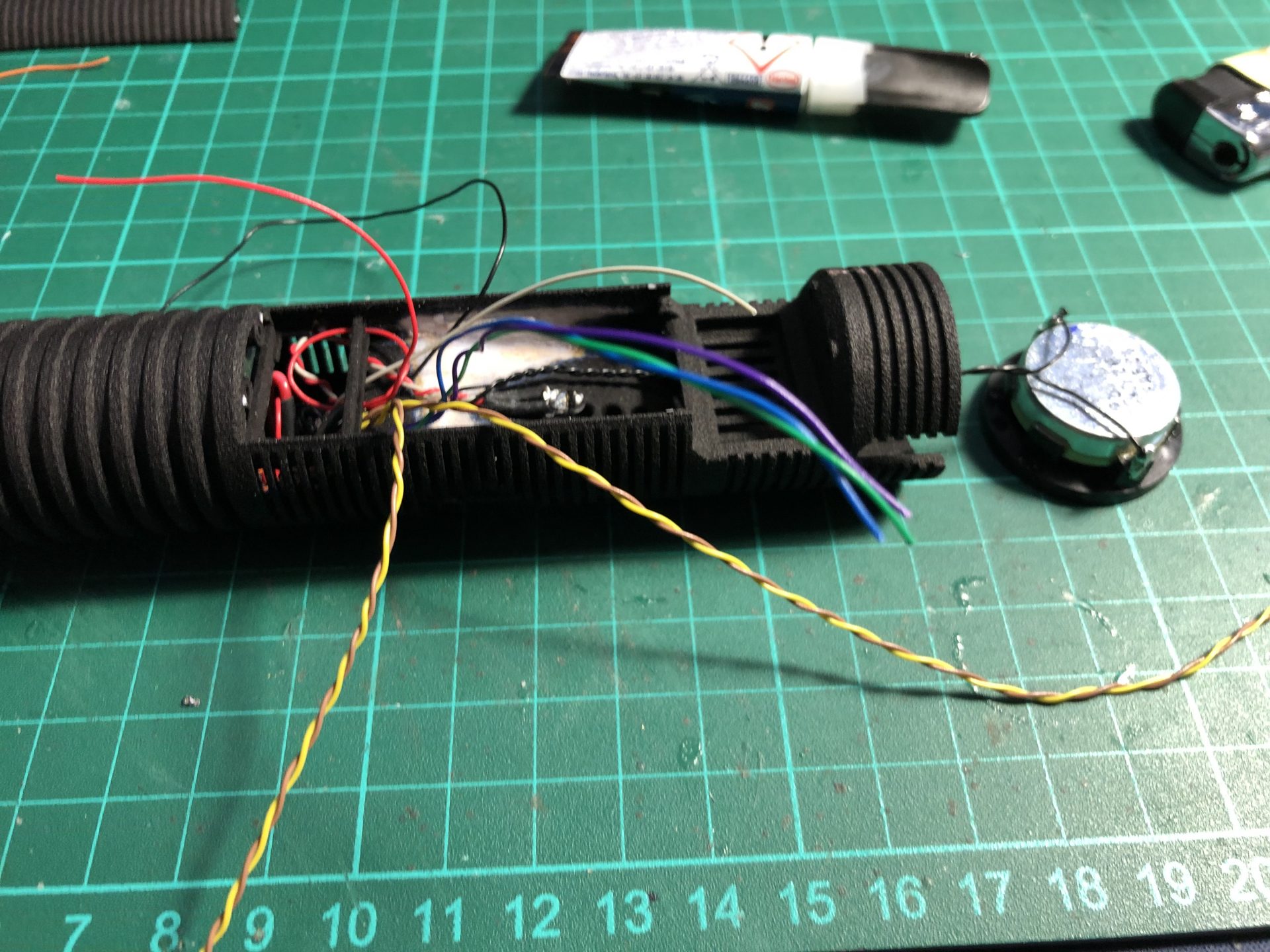

Wire the speaker, but wait before gluing it to the chassis

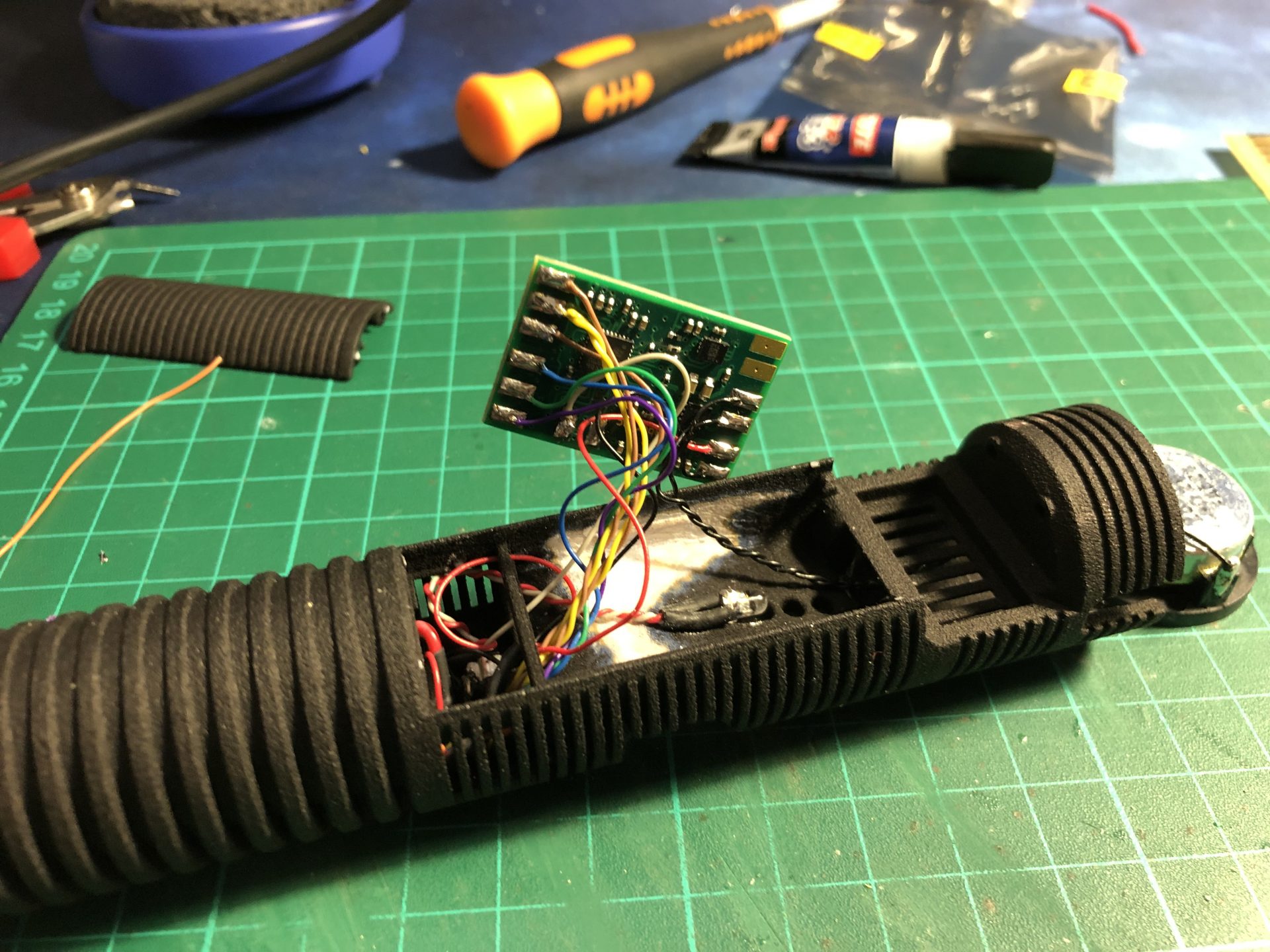

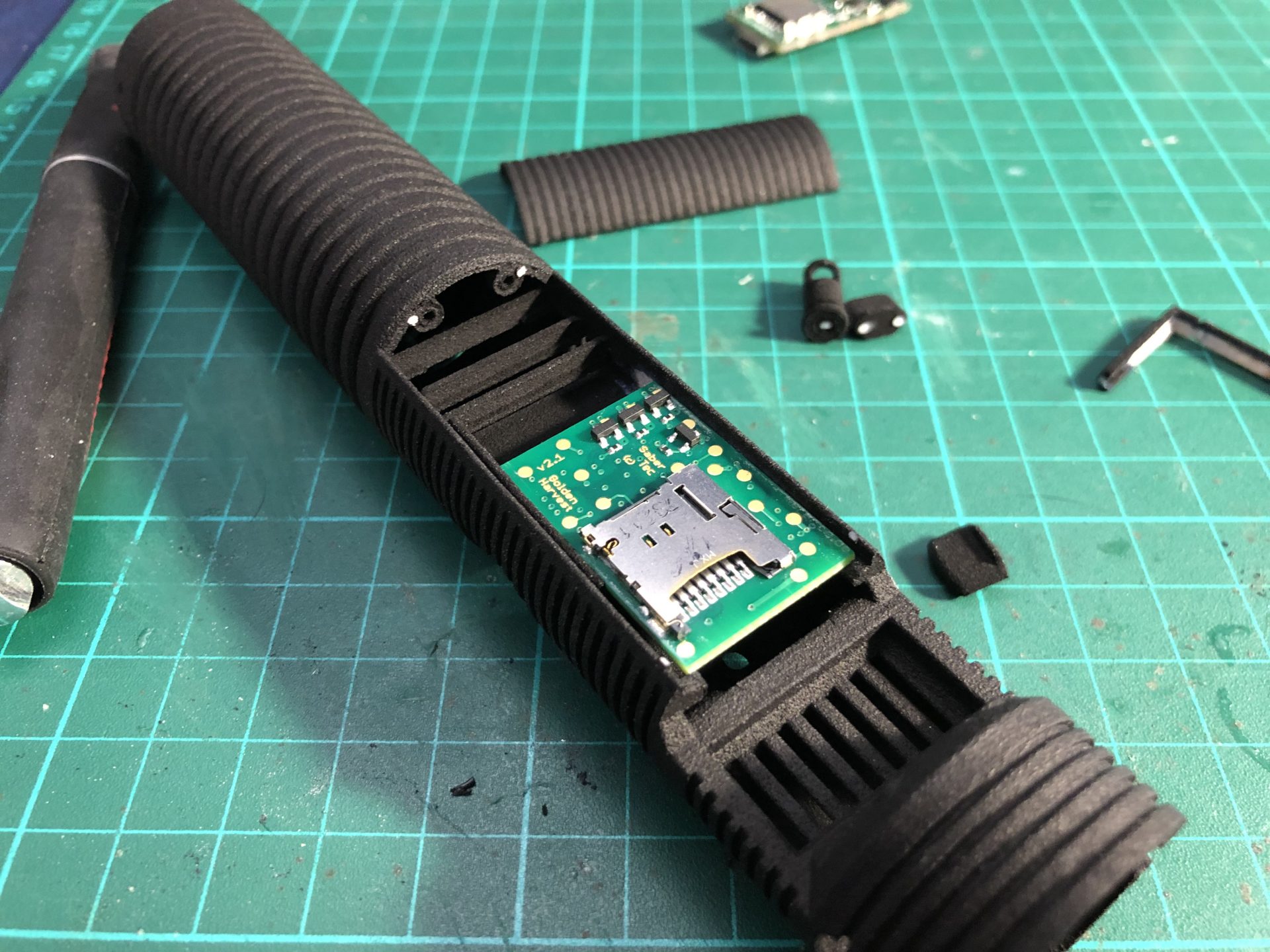

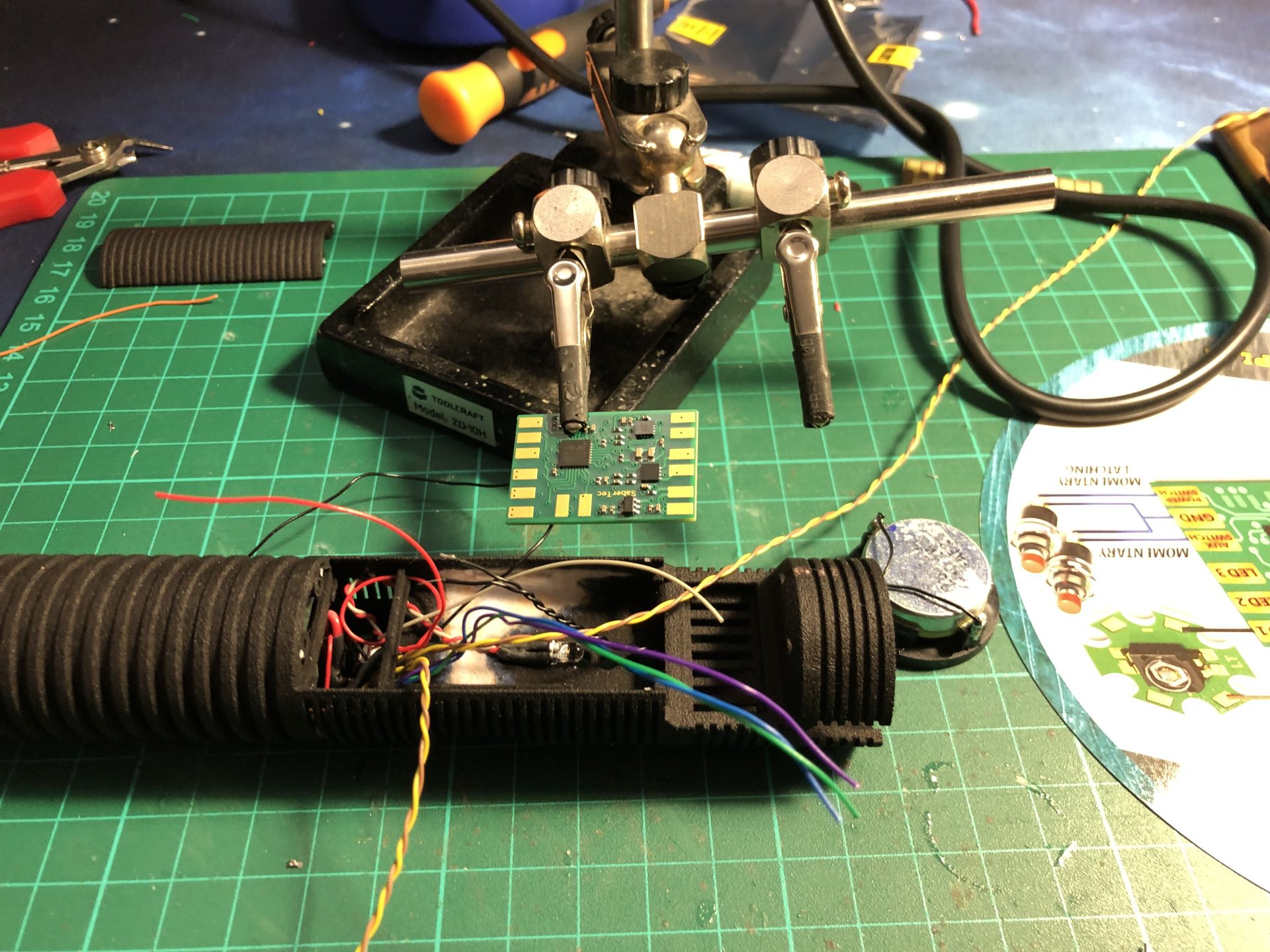

Install the soundboard

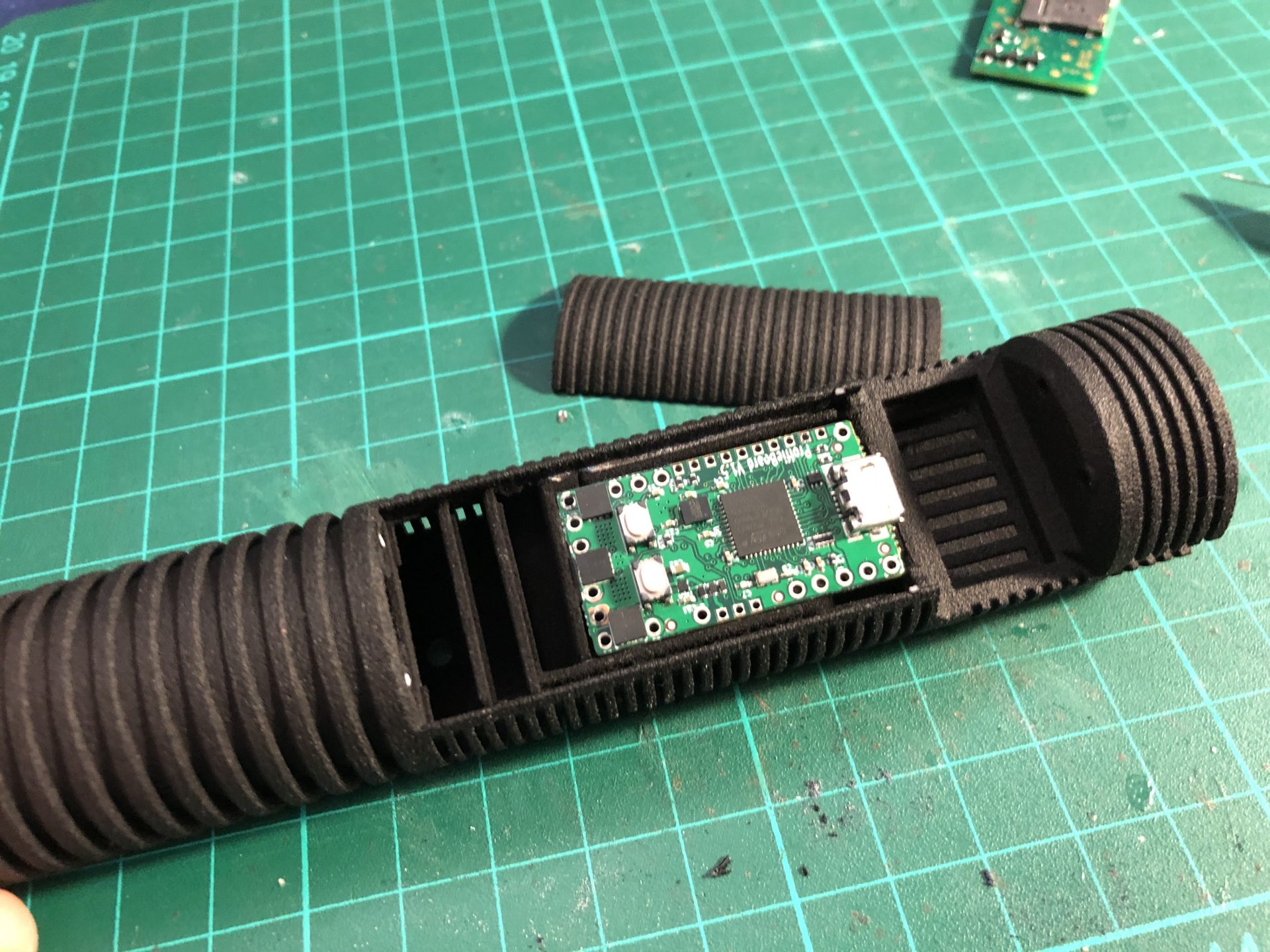

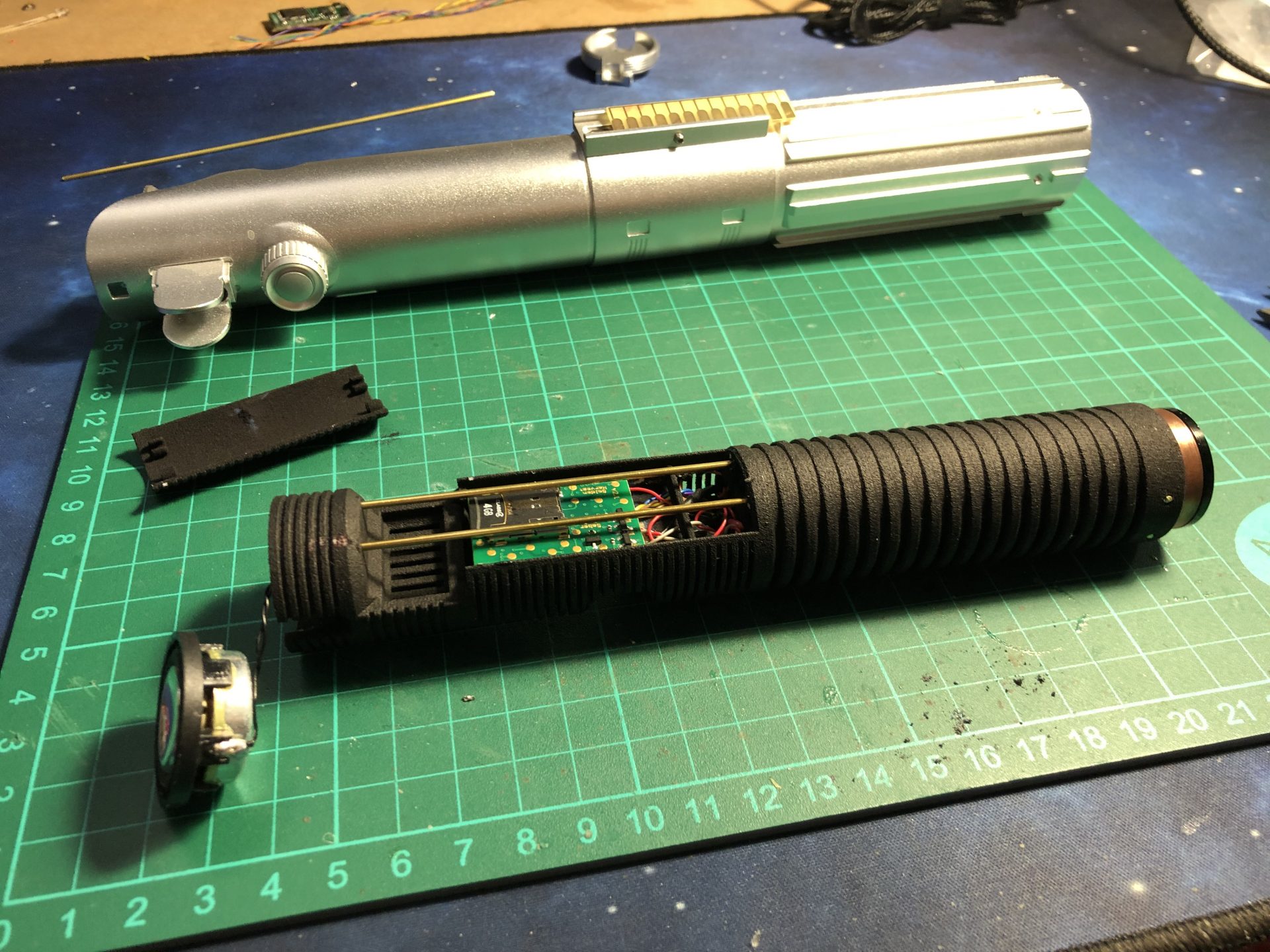

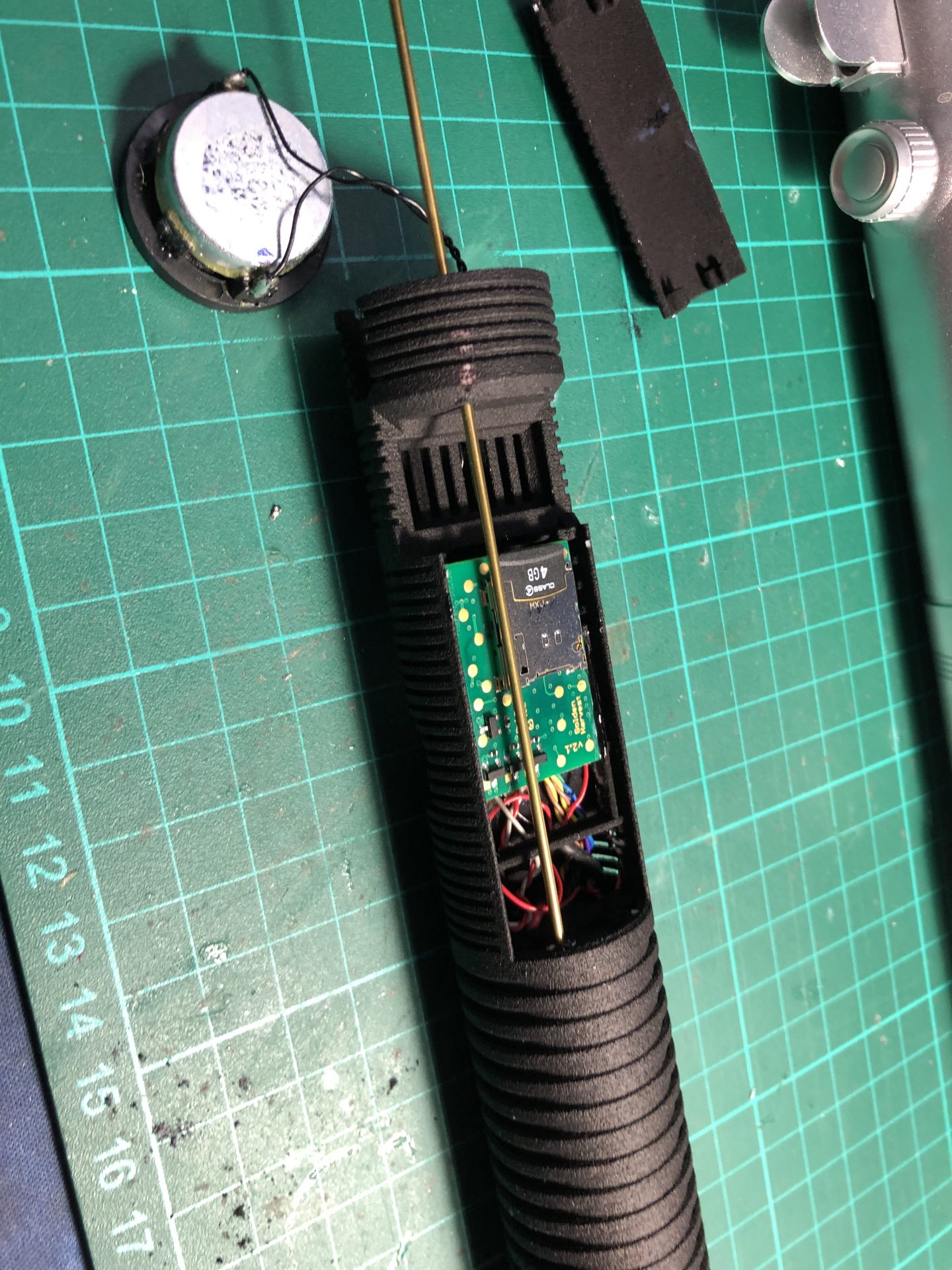

Glue the soundboard to the chassis, then add two 1.5mmOD rods as shown below

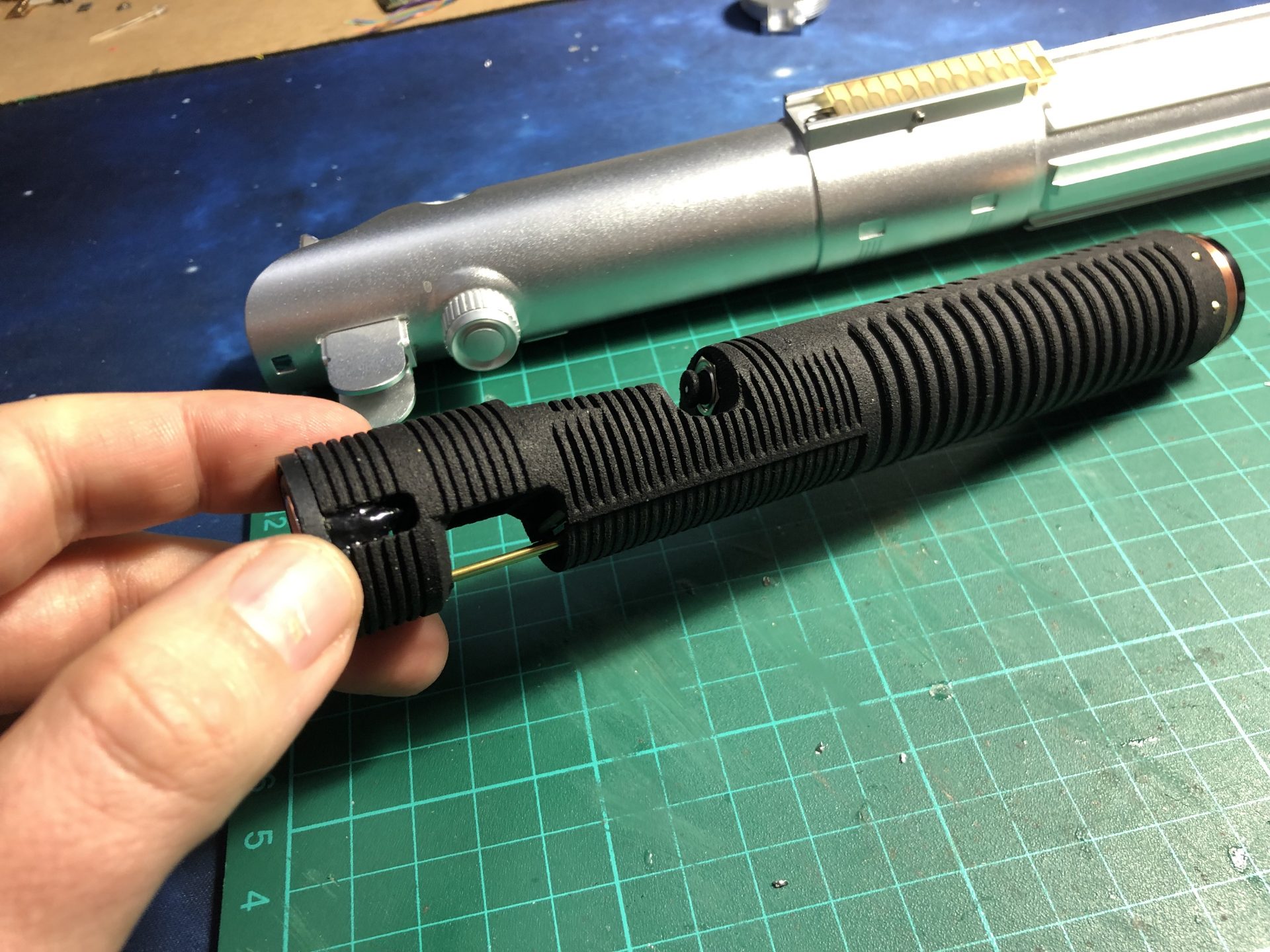

The speaker can now be glued on the chassis, and the cover will clip on the rods.
