Other Chassis for Mace Windu

89Sabers Windu (2019 & 2020)

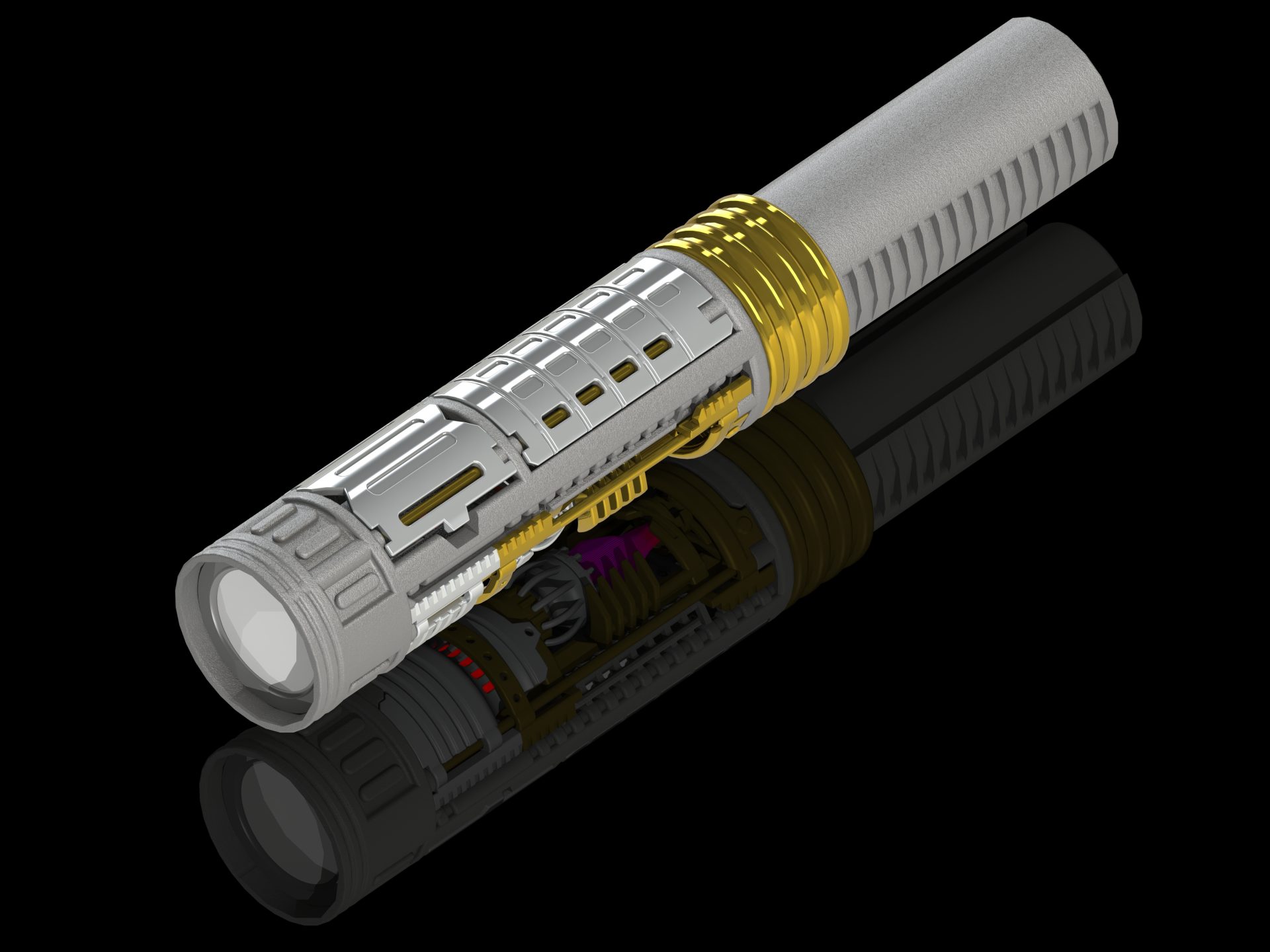

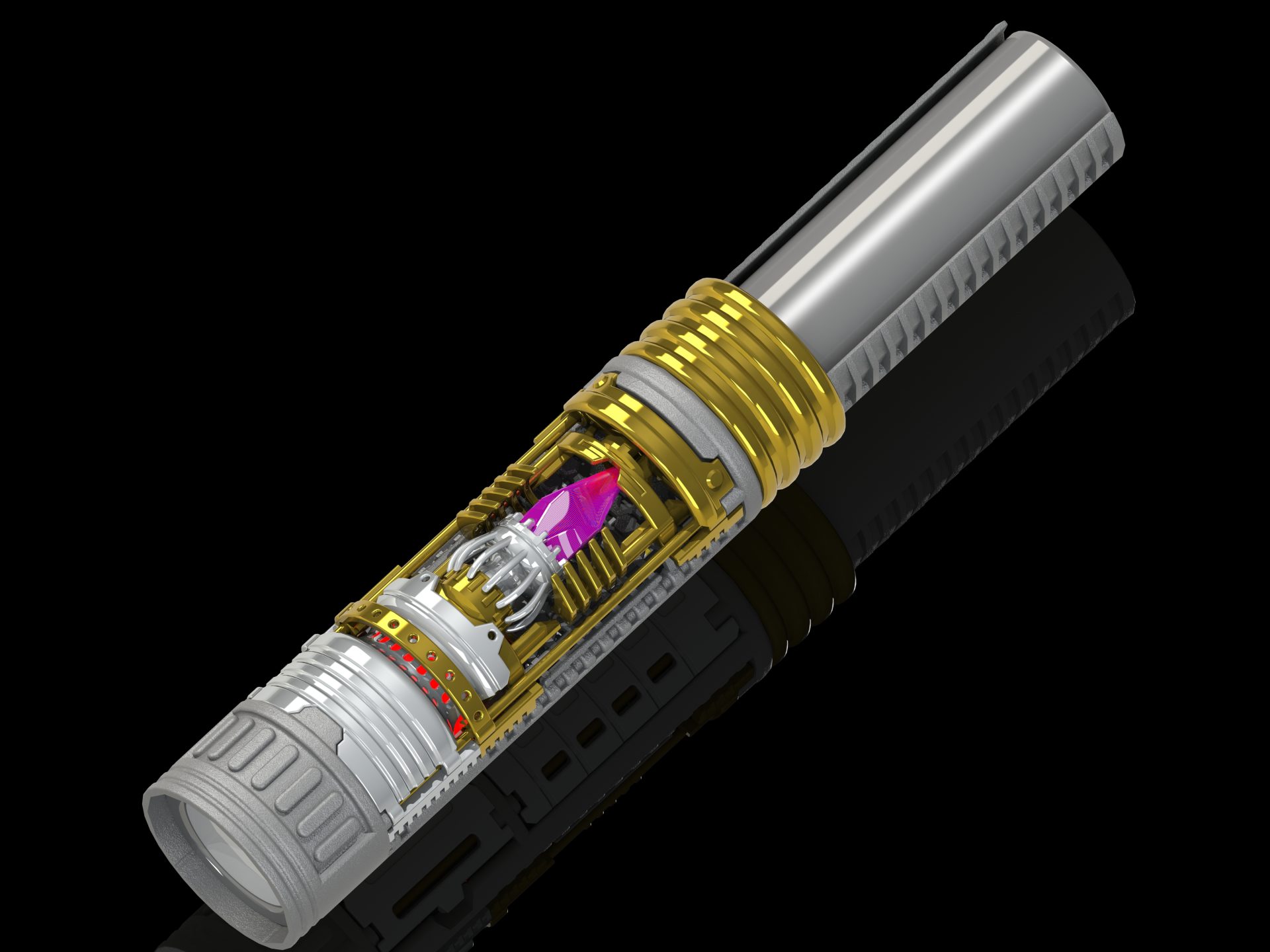

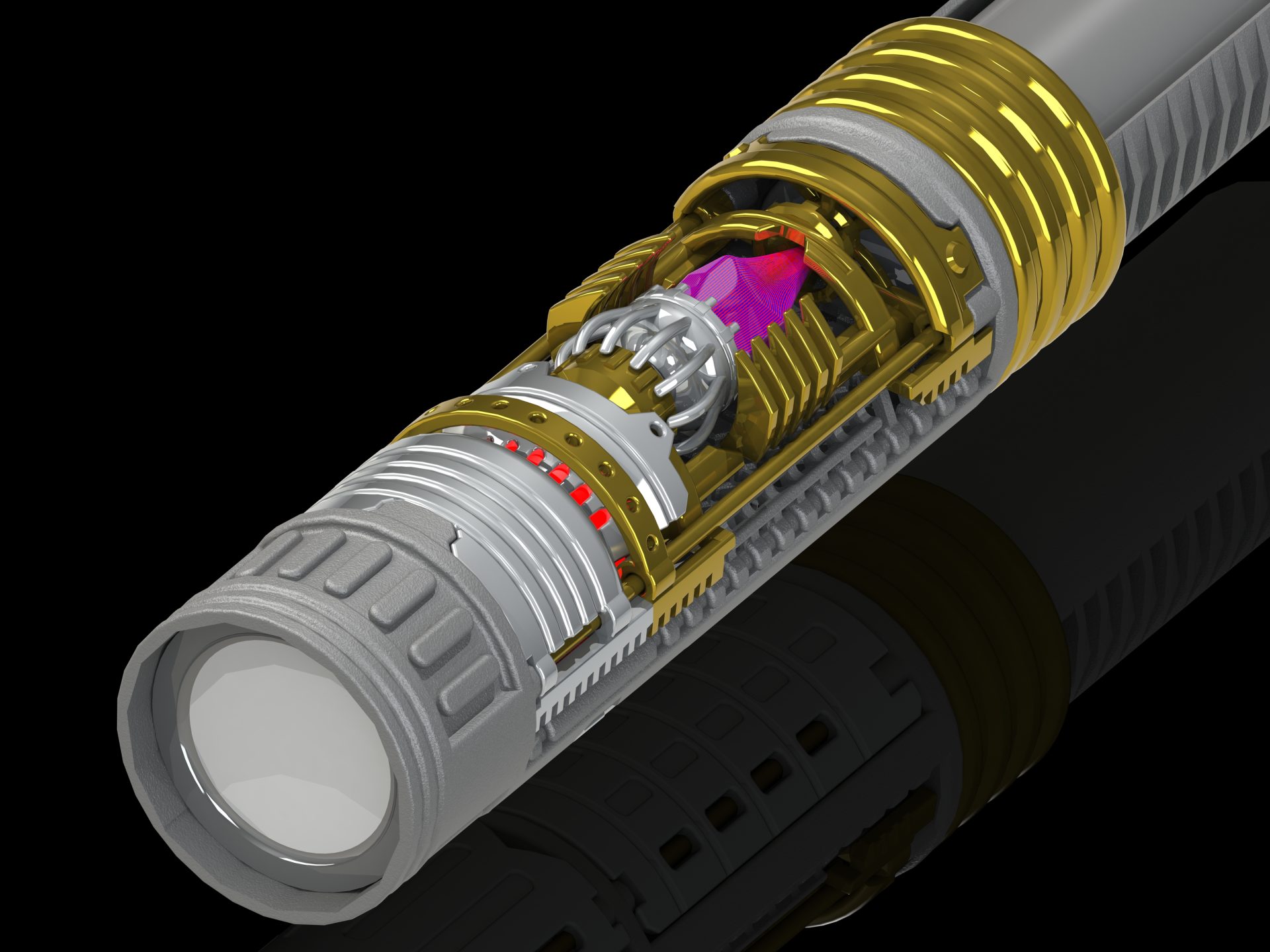

Chassis for the 2019 and 2020 hilts
(89Sabers windu 2017 hilt have a slightly smaller ID and shorter body length. It will required mods for the chassis to fit but it has been installed succesfully with the master chassis).

Parts Details:

1- 3D printed Chassis parts:

Shapeways Shop Section ⇒ C10 – 89Sabers


Depending on materials used and Shapeways material rates. Add the items in you can to get an estimate.
Install Level: Advanced

Part 1 – Main chassis CFX :korbanth-windu-master-chassis-part1-cfx
Part 1
– Main Chassis Proffie: korbanth-windu-master-chassis-part1-proffie
Part 2
– Metal Ring: korbanth-windu-master-chassis-part2
Part 3
– CC Insert:  korbanth-windu-master-chassis-part3
Part 4
– CC Insert: korbanth-windu-master-chassis-part4
Part 5
– CC Insert: korbanth-windu-master-chassis-part5
Part 6 – Metal Cover: korbanth-windu-master-chassis-part6
Part 7
– Metal Cover: korbanth-windu-master-chassis-part7
Part 8
– Crystal: korbanth-windu-master-chassis-part8


ProffieBoard: korbanth-windu-padawan-proffie
Plecter CFX: korbanth-windu-padawan-cfx
KR-Sabers Verso
: korbanth-windu-padawan-verso


ECO CHASSIS: korbanth-mw2-chassis-fdm-eco-chassis

2- Mace Windu hilt:

On Korbanth Website

3- Additional chassis parts:

Most of the chassis parts needed for our chassis are available at The Saber Armory.
Local hobby stores or online store (as well as eBay) are a good source for parts.
You can also be inventive and add any custom parts, wire mesh, paint job or else to your chassis to give it an unique look!
1.5mmOD rods

4- Electronic components:

Saber electronic components are basically more or less similar from one saber to another. You’ll need a main Led, a Battery, a recharge port, one or two switches, a soundboard, accent leds, a speaker and wires. Then the blade is the last part of your saber, they are usually made from PolyCarbonate tubes + tip.
You can find most of what you’ll need at The Saber Armory. Some components can also be found at The Saber Bay on Etsy. Local electronic shops or online stores like Digikey are also a good source.
Soundboard, Plecter Labs CFX, or ProffieBoard or KR-Sabers Verso
Battery, Single 18650 (3.7v)
⇒ Recharge Port, Padawan: 2.1mm recharge port
 Main Led, Tri-Cree XPE-2 or Neopixel
 Switches, included with the hilt.
 Speaker, 24mm Bass Speaker
 Wires, we strongly recommend PTFE wires, as the insulation is thin while still able to handle current very well. Use the smallest AWG size possible:
– Tri-Cree install => 30awg for eveything
– Neopixel install => 32 awg wires for everything except Battery and Neopixel strip + and – (24awg PTFE).
 Heat shrink tubing, to protect your joints.
7/8″ OD blades (with 1″ adapter).


Installation instructions:

Back to top
(step by step)

– These instructions will details the install procedure as much as possible. GOTH-3Designs cannot be held responsible for any mistakes made by DIYers.
– Always wear protective gear when working on install (gloves, eye protection, …), GOTH-3Designs cannot be held responsible in case of accident.
