Korbanth LS6 (2018) Chassis
These designs are no longer supported (FAQ)

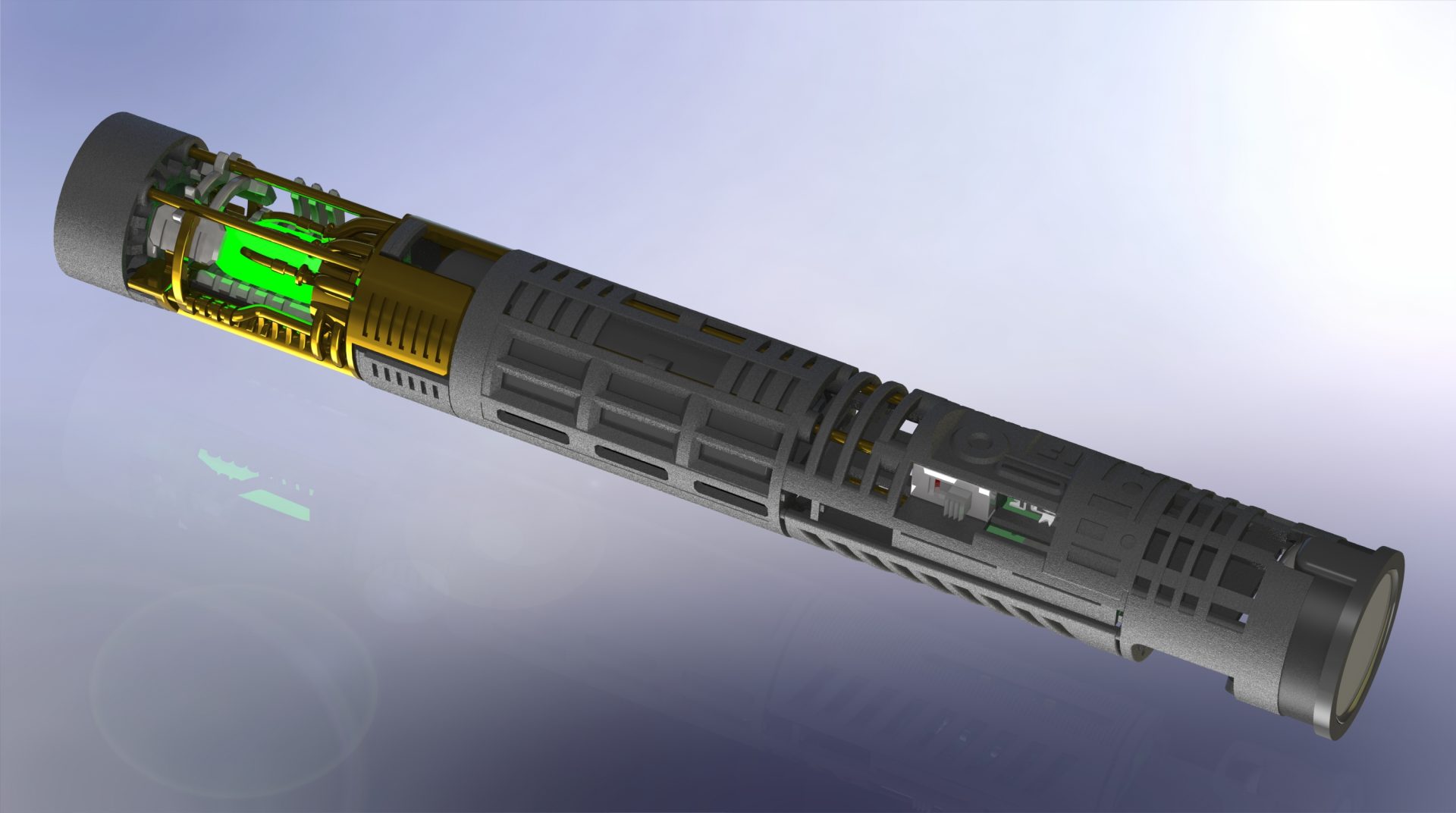

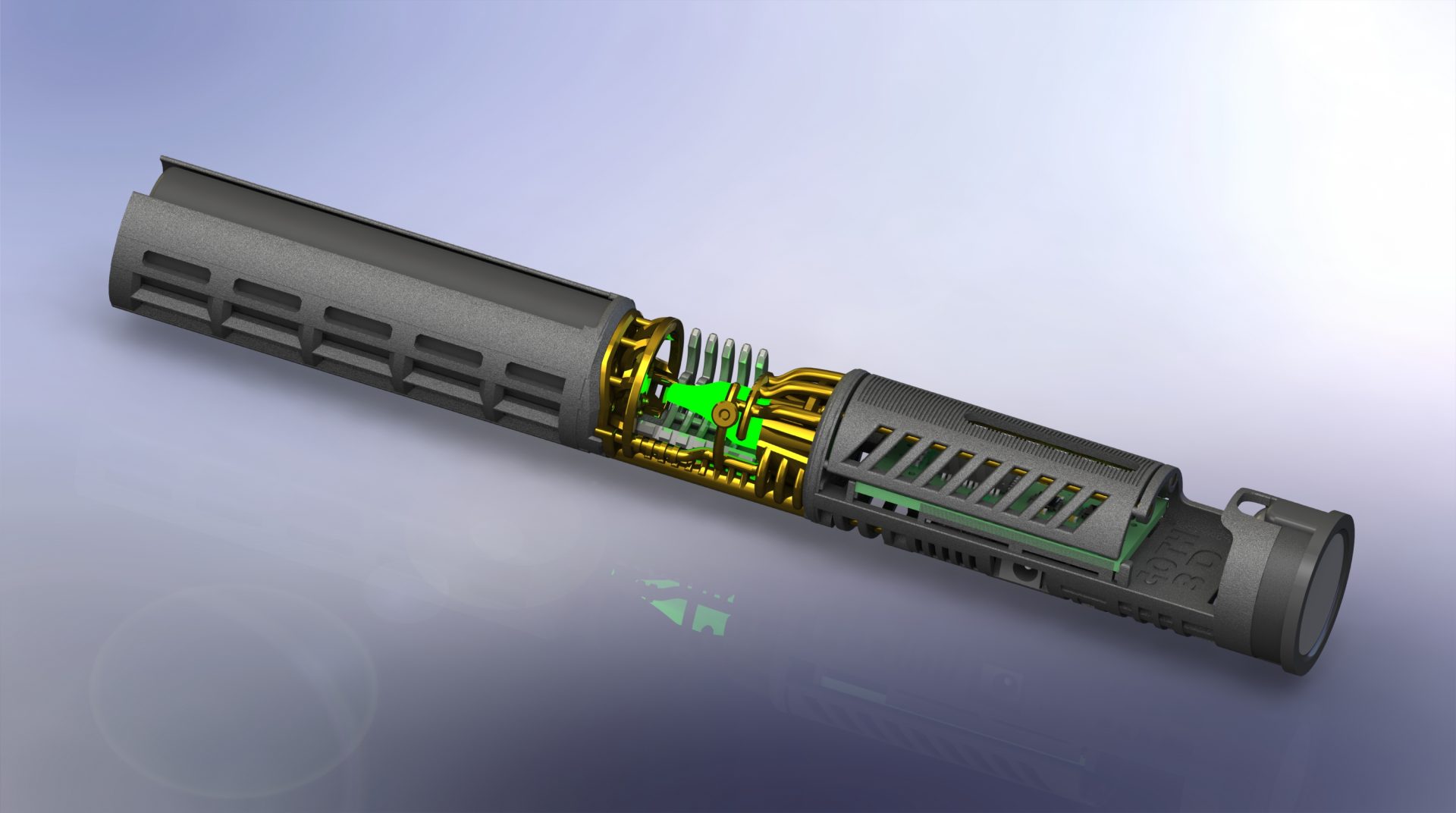

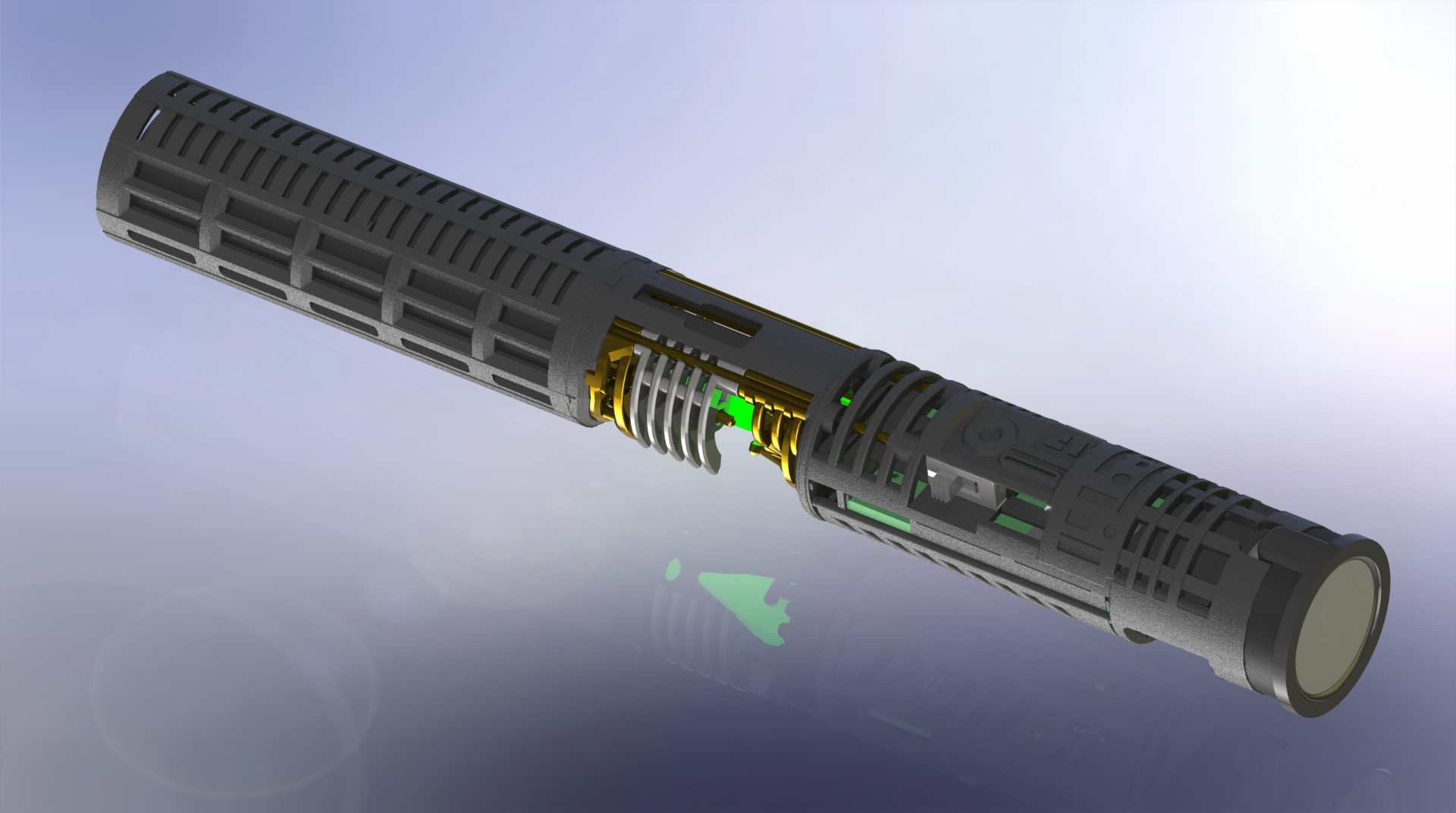

Variant 1 – Gullwing reveal
⇒ Part 1 – Main Chassis : korbanth-parks-ls6-master-var1-part1

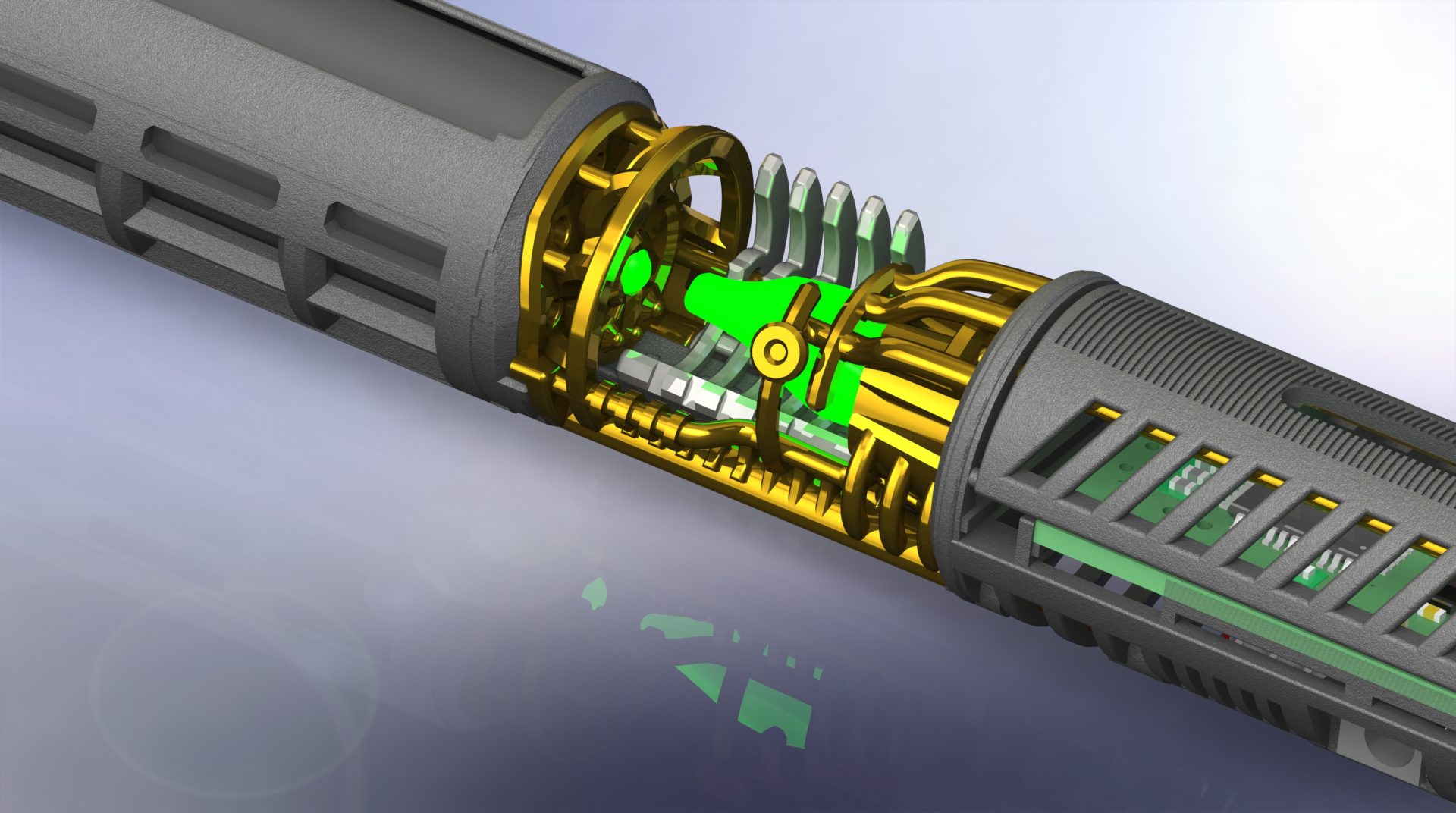

⇒ Part 2 – Crystal Chamber 1: korbanth-parks-ls6-master-var1-part2
⇒ Part 3 – Crystal Chamber 2: korbanth-parks-ls6-master-var1-part3
⇒ Part 4 – Optional Crystal : korbanth-parks-ls6-master-var1-part4
Variant 2 – Grenade reveal
⇒ Part 1 – Main Chassis : korbanth-parks-ls6-master-var2-part1
⇒ Part 2 – Crystal Chamber 1: korbanth-parks-ls6-master-var2-part2
⇒ Part 3 – Crystal Chamber 2: korbanth-parks-ls6-master-var2-part3
⇒ Part 4 – Crystal Chamber 3: korbanth-parks-ls6-master-var2-part4
⇒ Part 5 – Optional Crystal : korbanth-parks-ls6-master-var2-part5
⇒ All.In.One – Main Chassis : korbanth-parks-ls6-padawan-lightsaber-chassis
⇒ ECO Chassis : korbanth-ls6-fdm-eco-chassis
2- Additional chassis parts:
The Master Chassis requires the following parts:
⇒ Brass or copper rods – 1.5mm max OD.
Quick Install Guide:
– These instructions will details the install procedure as much as possible. GOTH-3Designs cannot be held responsible for any mistakes made by DIYers.
– Always wear protective gear when working on install (gloves, eye protection, …), GOTH-3Designs cannot be held responsible in case of accident.
Note 1: 30awg wires and smaller are mandatory for this install (30awg for main wires and 32awg for accent leds and switches are highly recommended)…. Oh and definitely use colored wires to make your life easier.
Note 2: These instructions will not cover how to wire the soundboard, make sure to learn how to by reading the manual.
Note 3: Recharge port wiring reminder:

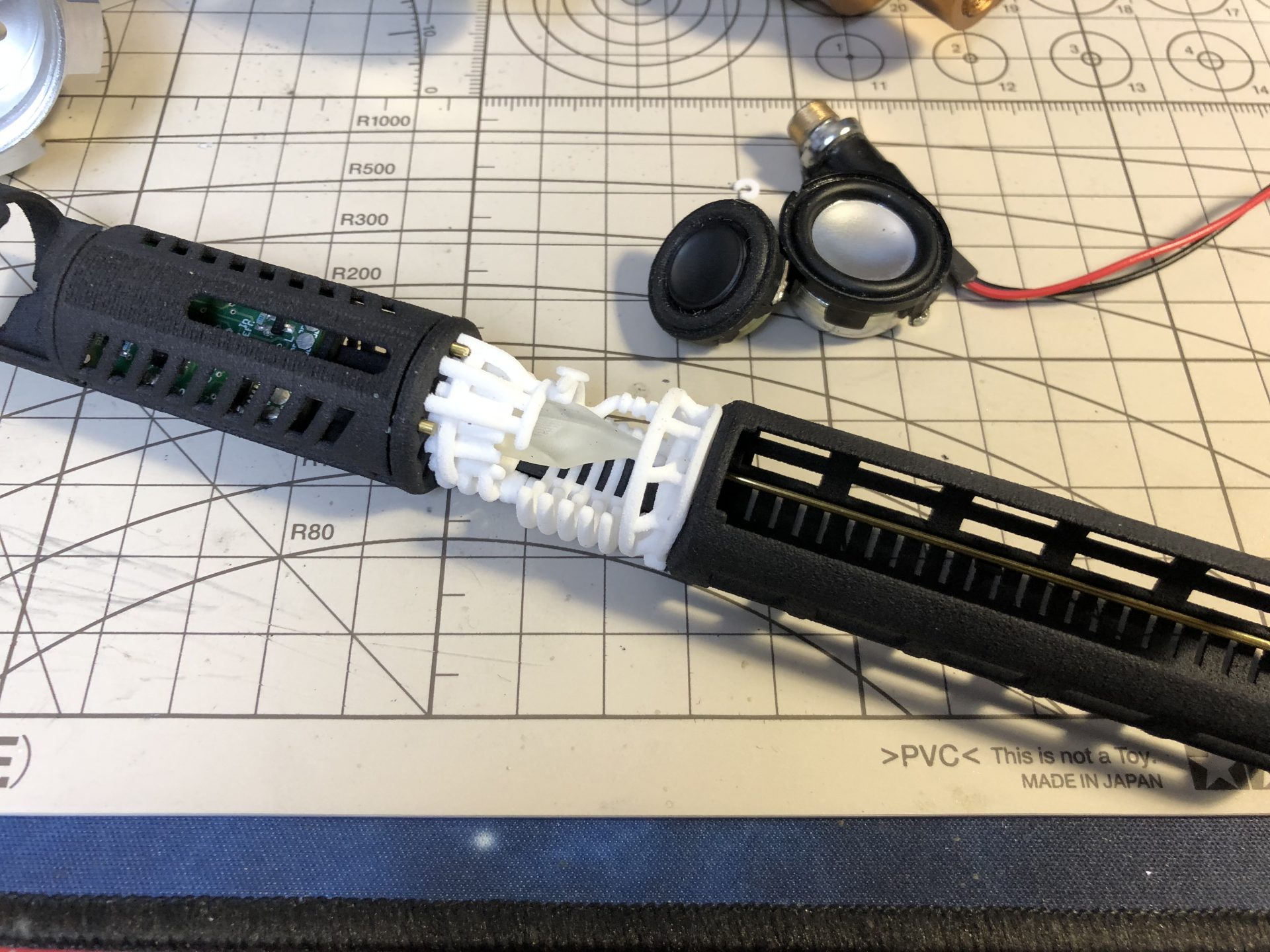

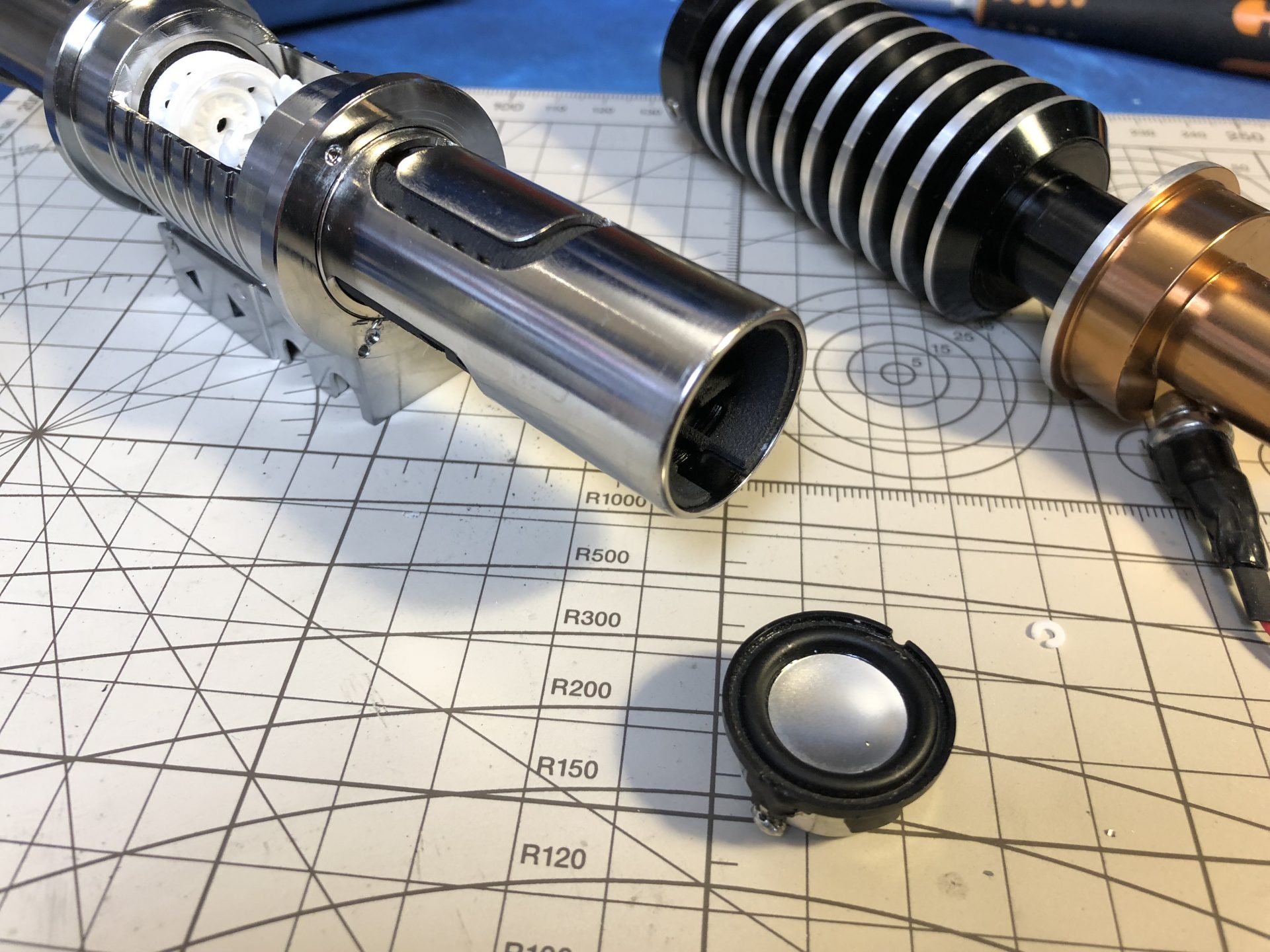

The chassis can accept either a 24mm bass speaker or 20mm bass speaker. In case a 24mm is to be installed, the inner tube will require modification (Dremel cut and sanding) in order to allow more space for the speaker to sit.

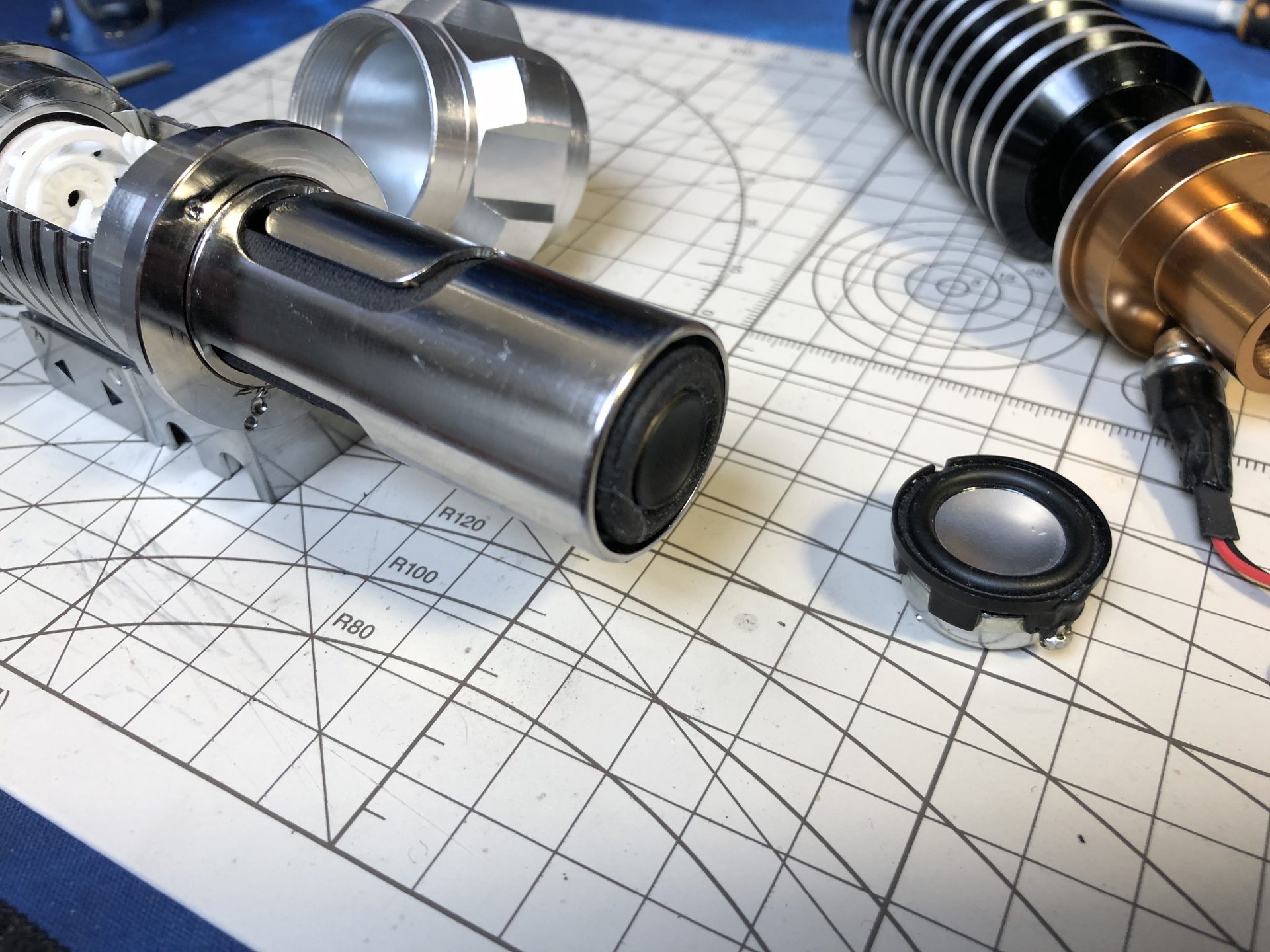

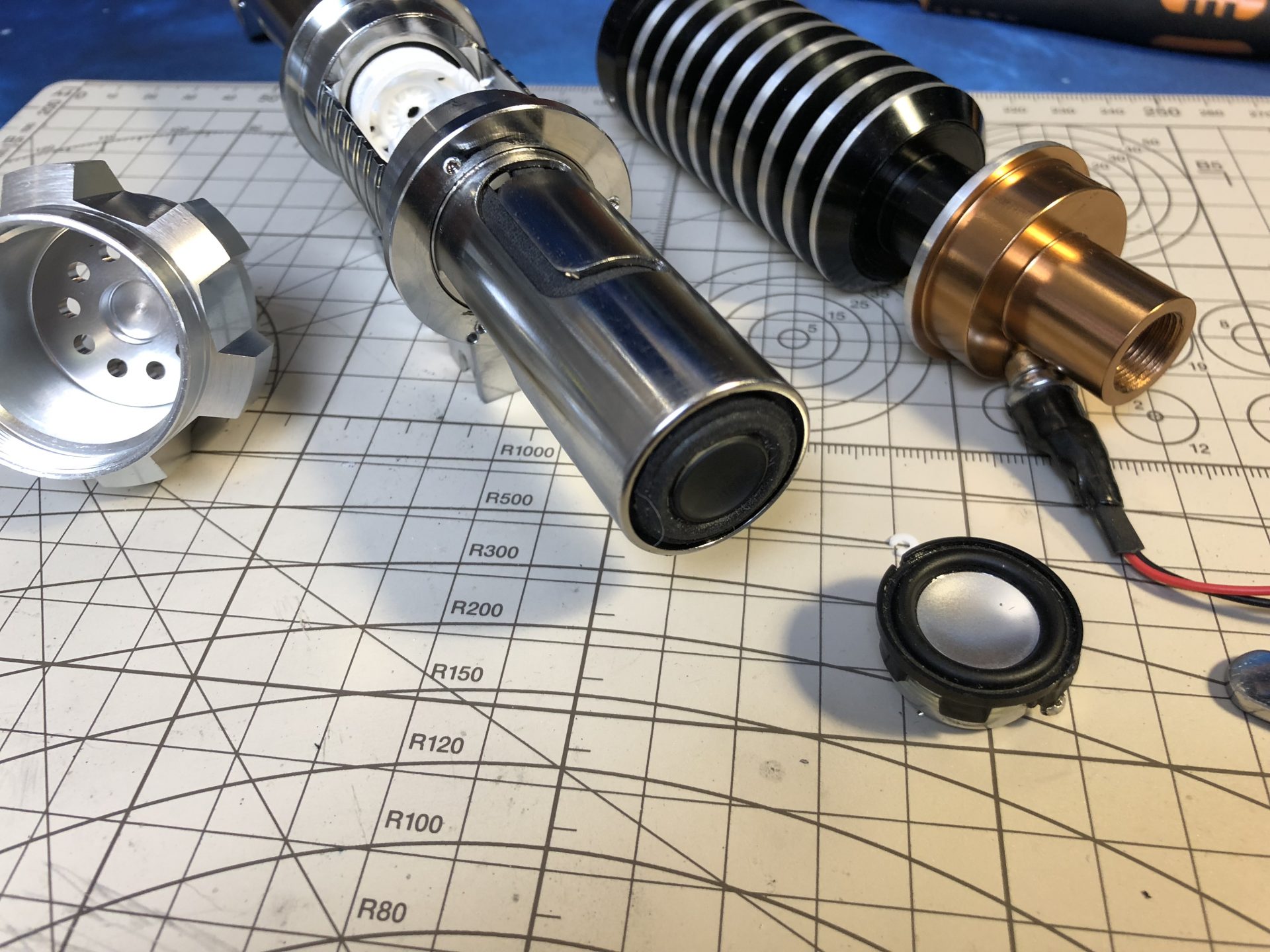

The 20mm speaker doesn’t require modification to the inner hilt and sits flush.

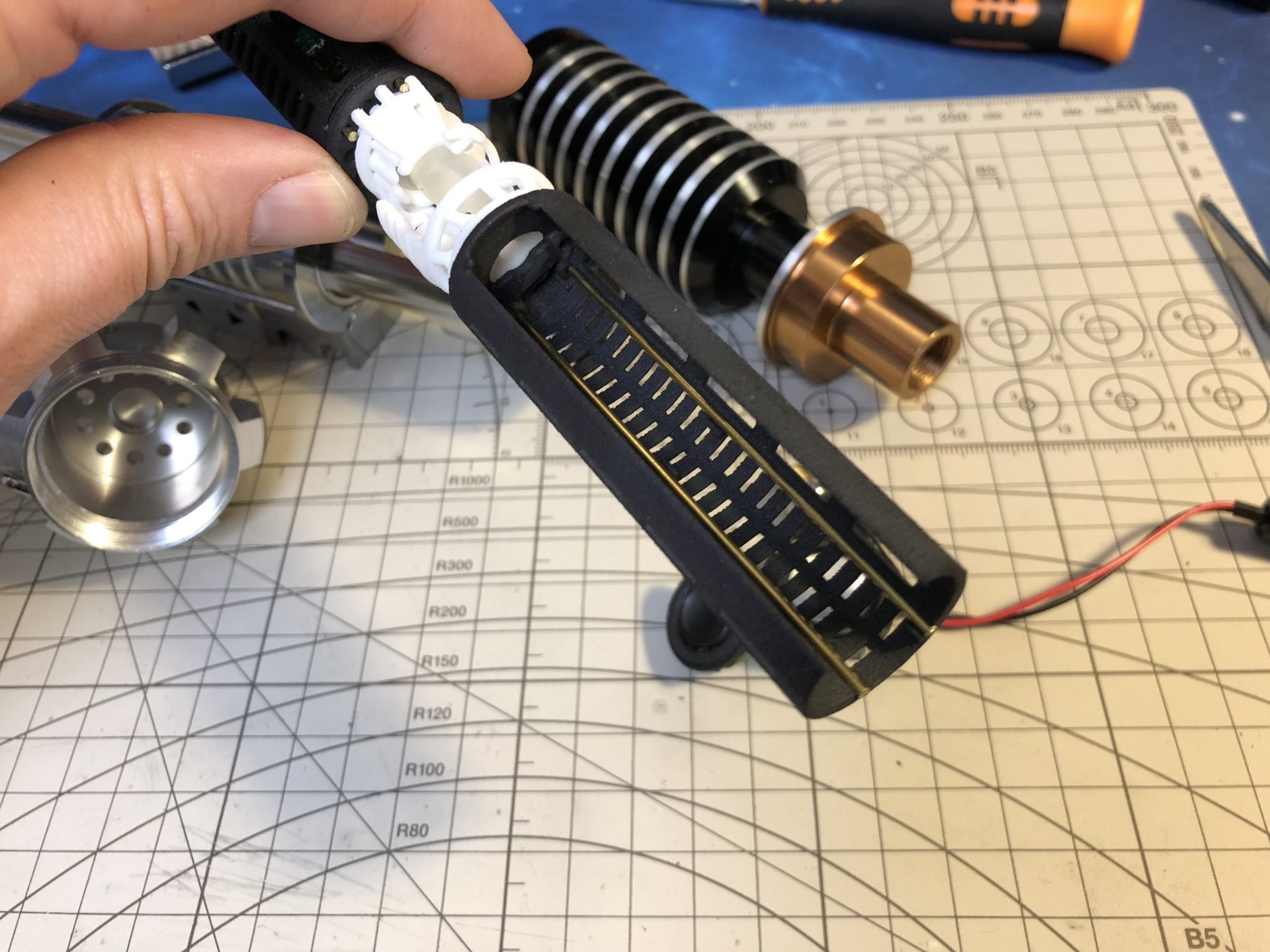

The soundboard cover comes attached to the chassis and needs to be cut. It will then be held by 1.5mmOD rods.

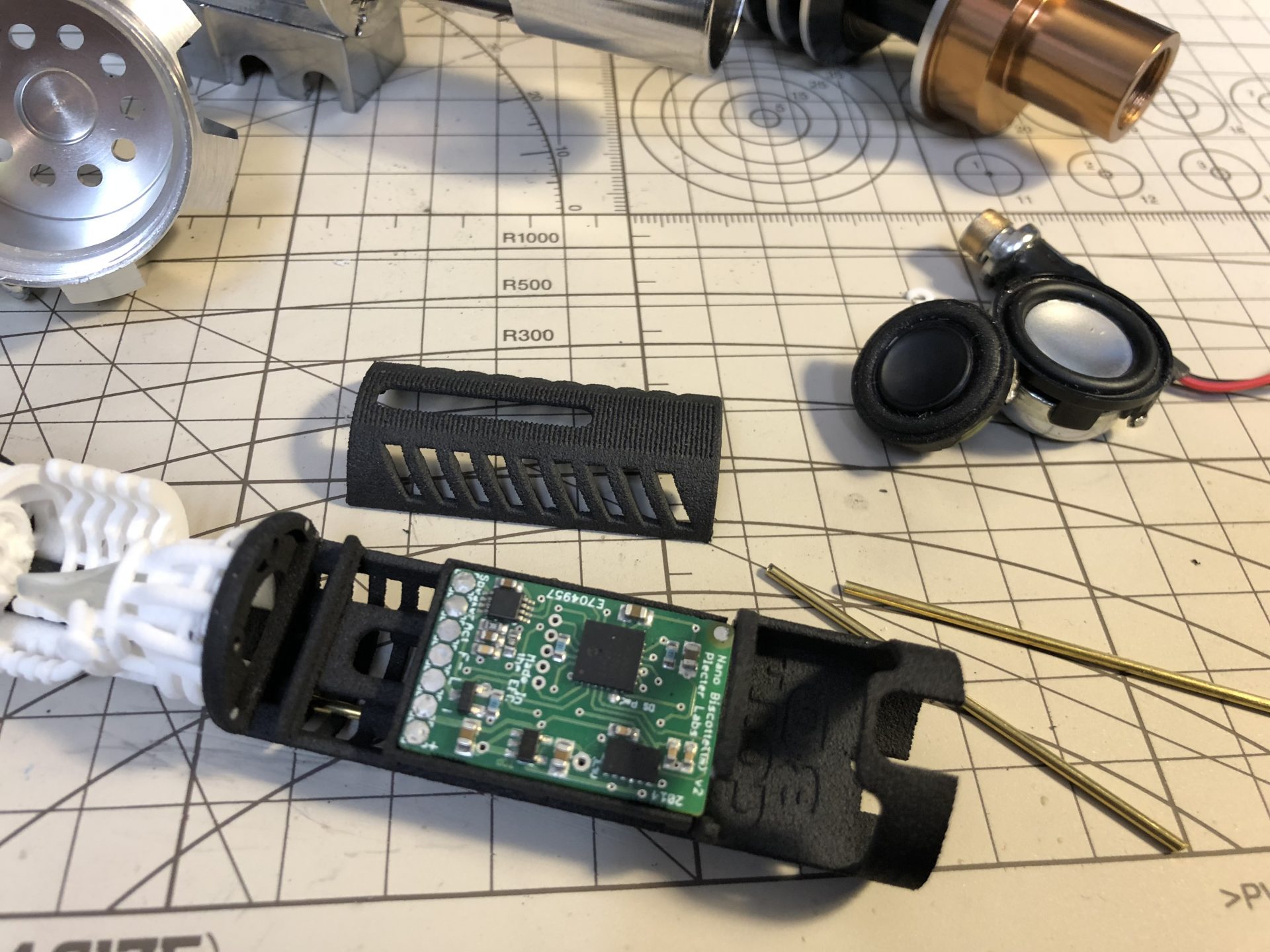

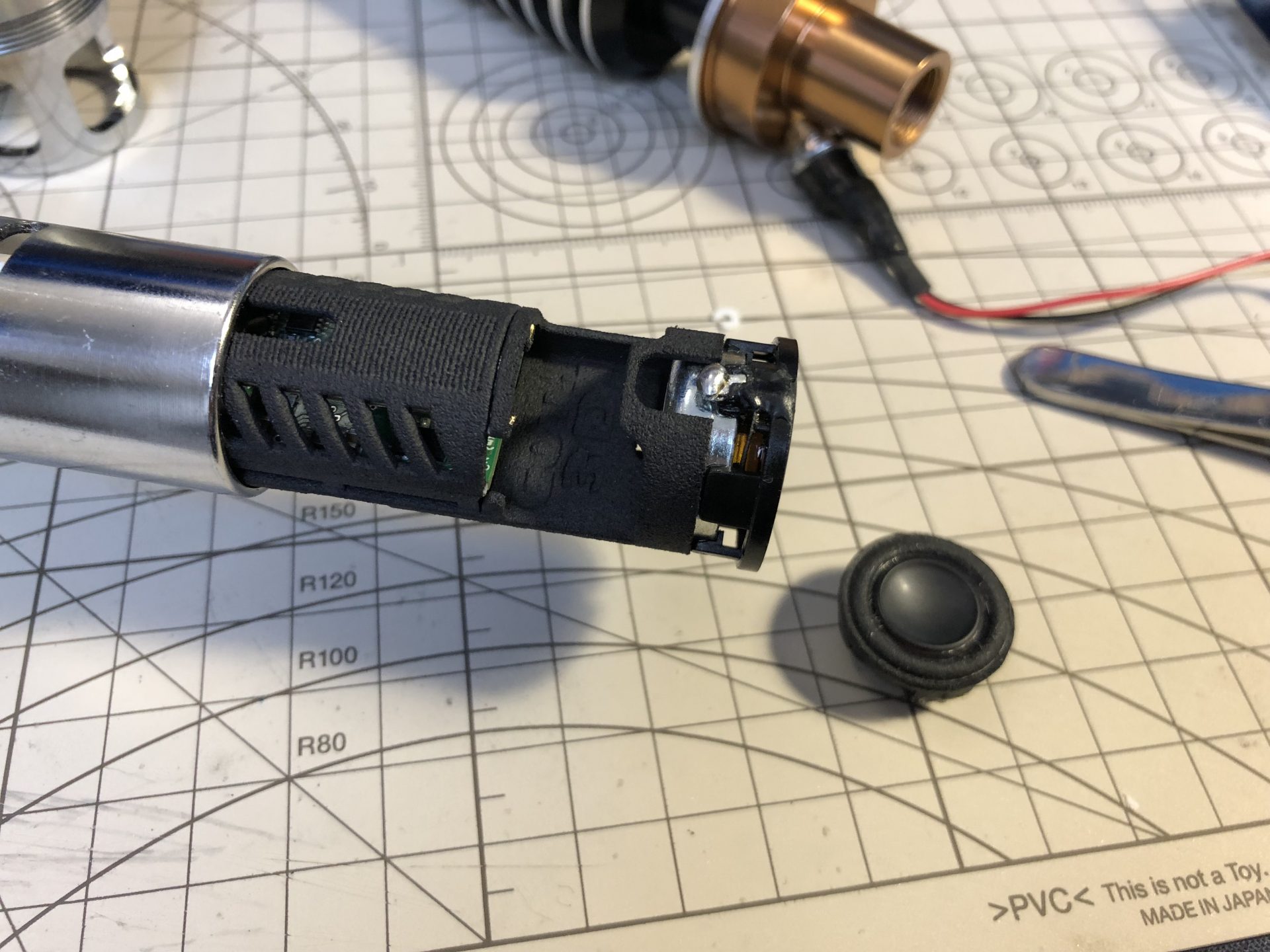

The hilt inner tube will require modification (cut a window) in order to allow SD card access.

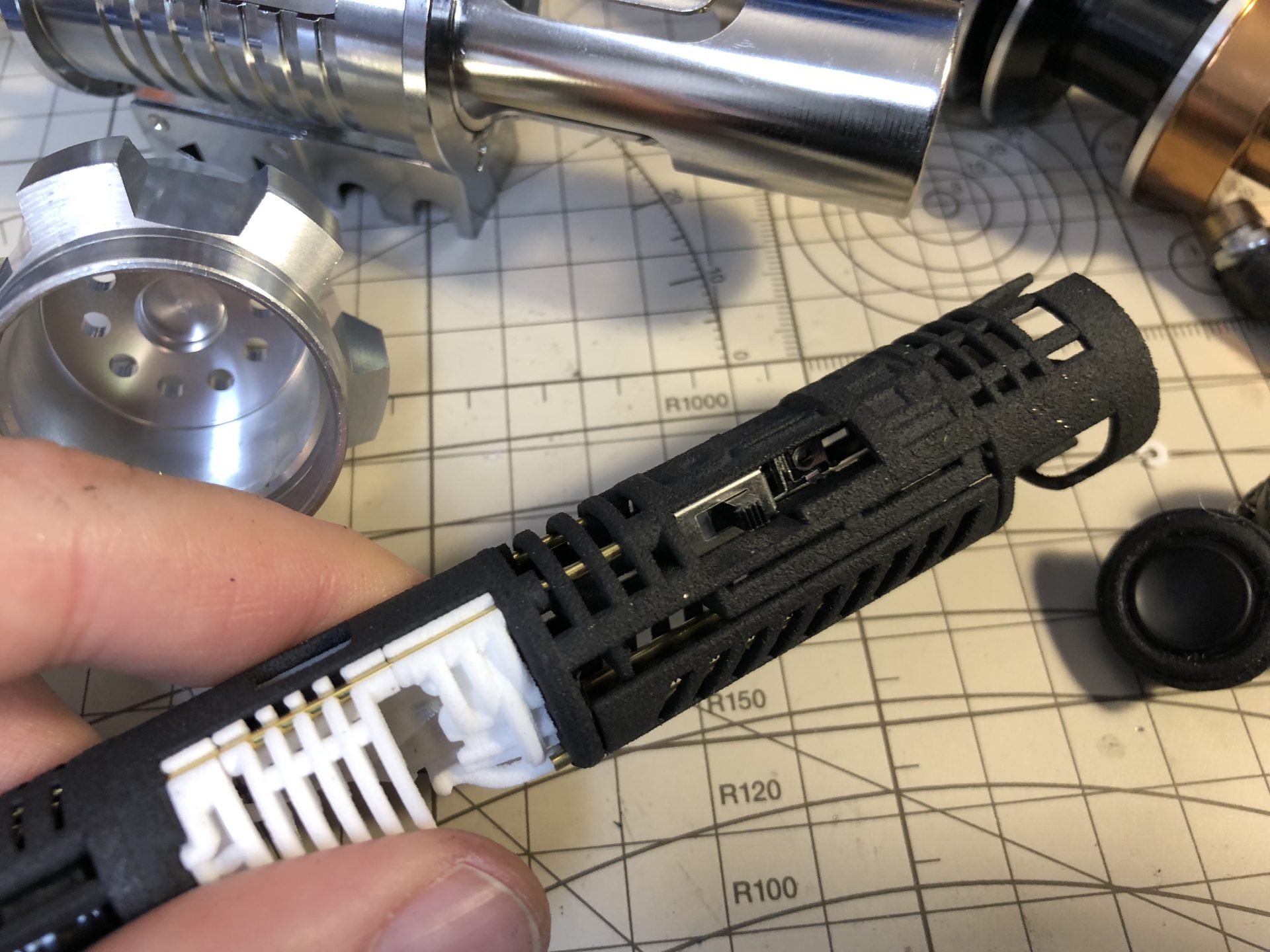

1.5mmOD rods are used to hold the crystal chamber part, and run all the way to the battery slot.
An additional short rod can also be added to the CC part2.
The 1.3mm Recharge port and Kill switch are installed as shown below. They are accessible through the opening in the inner tube bottom.
If the control box (Hero style) is used, modifications to the delivered box PCB are recommended to install the green and red arrow led. Remove all components from the PCB except switches and drill holes for 3mm access leds.
If the clamp is used (V2 / V3 style), a Graflex clamp switch holder can be used.

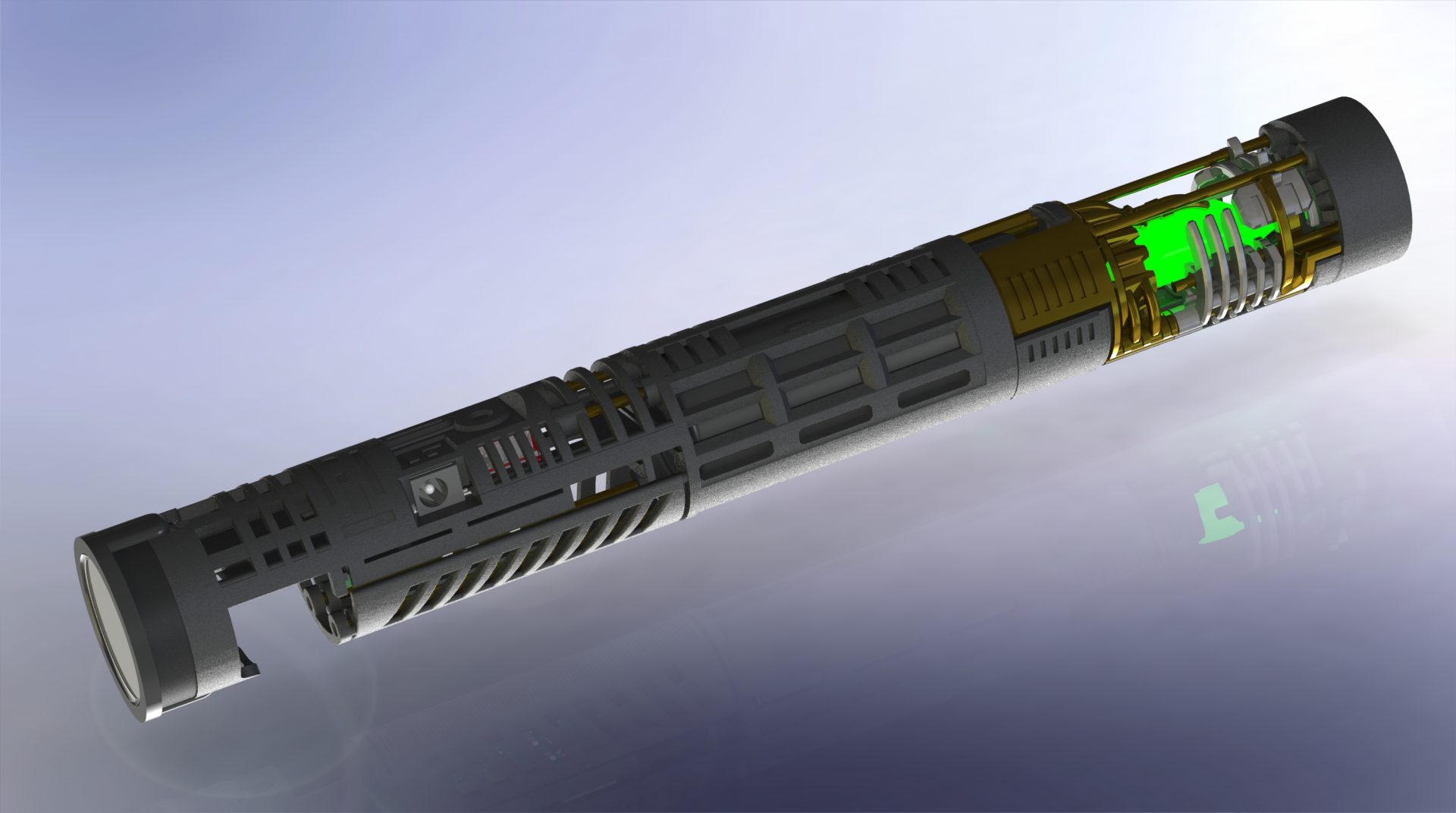

If the Master Variant 2 Grenade Reveal chassis is used, there are various options for this kind of thin neck saber reveal:
– Use a connector (like Neopixel pogo pins connector).
– Without connector, make sure you strictly use the length required (calculate the length when hilt is in reveal mode, then install your led with the hilt closed).
Then, cut the inner 7/8″ID tube shorter of 5mm to 10mm approx to allow clearance and avoid wires to get pinched.
