Parts Details:

1- 3D printed Chassis parts:

Shapeways Shop Section ⇒ C7 – 89Sabers

2chassis levels are available for the 89Sabers ObiWan (or Korbanth K4v2) saber Kit:

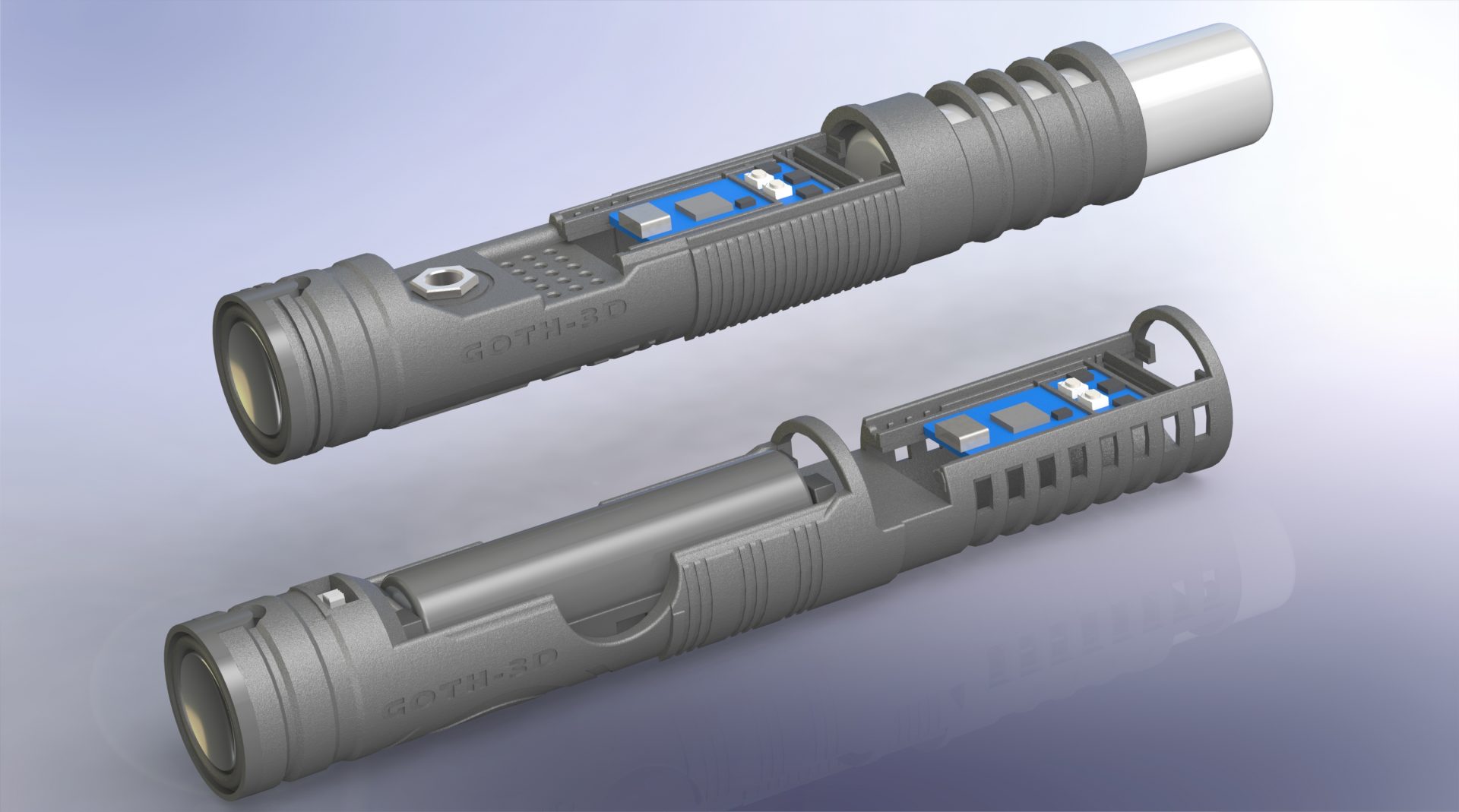

Padawan for a basic install, with 2 variants and chassis mainly focused on securing all your electronics.
Master for a fully removable chassis core, with a crystal chamber part that can be printed in metal and revealed by unscrewing the booster/pommel section.

Master Chassis:


Prices: Depending on Shapeways material rate, add the item in your cart to check out the estimate.
(additional cost depending on material used for the Crystal Chamber part)

Padawan Chassis:

Prices: Depending on Shapeways material rate, add the item in your cart to check out the estimate.
Install Level: Beginner
Variant 1 for 21700 battery
 Chassis Var1: 89sabers-obi-wan-ep4-padawan-var1

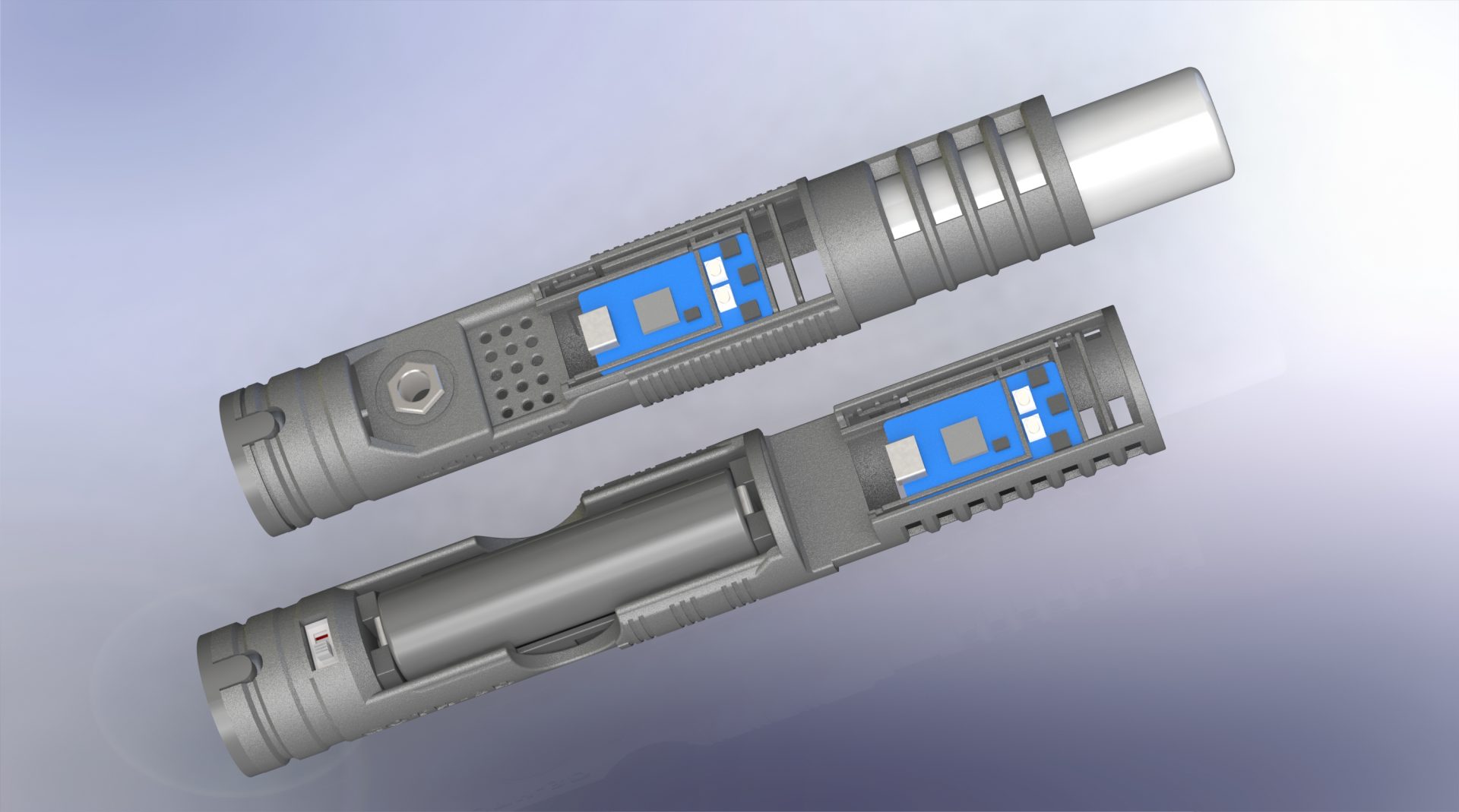

Variant 2 for removable battery
 Chassis Var2: 89sabers-obi-wan-ep4-padawan-var2

ECO Chassis & PIY File:

ECO Chassis Var1: 89sabers-2018-k4-variant-1-fdm-eco-chassis
ECO Chassis Var2: 89sabers-2018-k4-variant-2-fdm-eco-chassis
PIY File Var1: 89sabers-2018-k4-variant-1-fdm-chassis-stl-file
PIY File Var2: 89sabers-2018-k4-variant-2-fdm-chassis-stl-file

2- Additional chassis parts:

Most of the chassis parts needed for our chassis are available at The Saber Armory.
Local hobby stores or online store (as well as eBay) are a good source for parts.
You can also be inventive and add any custom parts, wire mesh, paint job or else to your chassis to give it an unique look!
No additional parts needed on the Padawan chassis

3- DIY empty hilts:”

 Check on The Saber Armory
On Etsy – Saberbay

4– Electronic components and blades:
Saber electronic components are basically more or less similar from one saber to another. You’ll need a main Led, a Battery, a recharge port, one or two switches, a soundboard, accent leds, a speaker and wires. Then the blade is the last part of your saber, they are usually made from PolyCarbonate tubes + tip.
You can find most of what you’ll need at The Saber Armory. Some components can also be found at The Saber Bay on Etsy. Local electronic shops or online stores like Digikey are also a good source.

Plecter Labs – NB, Prizm 5.1, CF9.
Naigon Elelctronic Creations – I3 or other NEC boards.
Padawan Var1: 21700 battery
Padawan Var2: Keystone Battery Holder
⇒ Recharge Port, Padawan Var1: 2.1mm port (kill key included).
 Battery charger, according to the battery voltage used.
 Main Led, Tri-Cree XPE-2 or Neopixel
 Switches are probided with the hilt.
 On / Off Switch (Padawan Var2) – slider switch (example).
 Speaker, 28mm Bass Speaker
 Accent Leds
 Wires, we strongly recommend PTFE wires, as the insulation is thin while still able to handle current very well. You can find them from this eBay shop for example. Use the smallest AWG size possible:
– Tri-Cree install => 30awg for eveything
– Neopixel install => 32 awg wires for everything except Battery and Neopixel strip + and – (24awg PTFE).
 Heat shrink tubing, to protect your joints.
 1″ OD Blades.





Quick Install Guide:

– These instructions will details the install procedure as much as possible. GOTH-3Designs cannot be held responsible for any mistakes made by DIYers.
– Always wear protective gear when working on install (gloves, eye protection, …), GOTH-3Designs cannot be held responsible in case of accident.

Note 1: Recharge port wiring reminder:

Note 2: MultiBoards Adaptive Chassis 4.0:


Master Chassis:

Work in progress
